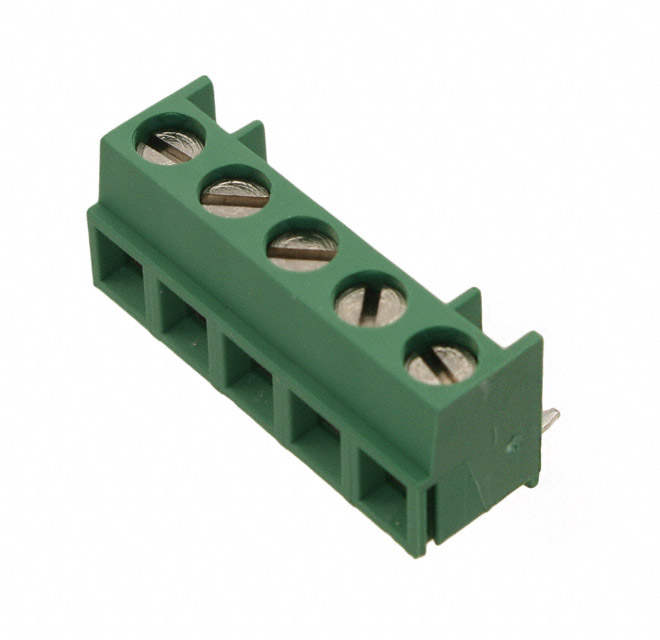

284093-5
Or copy the link below:
- Mfr.Part #
- 284093-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 5POS TOP ENTRY 5MM PCB
- Stock
- 13,065
- In Stock ：
- 13,065
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Packaging :
- Bulk
- Flammability Rating :
- UL94 V-0
- Number of Ways :
- 5
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 300V
- Number of Rows :
- 1
- Mount :
- Through Hole
- Connector Type :
- Receptacle
- Wire Gauge :
- 16-30 AWG
- RoHS Status :
- RoHS Compliant
- Max Voltage Rating (AC) :
- 300V
- Current Rating :
- 13.5A
- Pitch :
- 0.197 5.00mm
- Contact Material :
- Brass
- Feature :
- Interlocking (Side)
- Termination :
- Solder
- Contact Material - Plating :
- Brass - Tin Plated
- Orientation :
- RIGHT ANGLE
- Radiation Hardening :
- No
- Additional Feature :
- PA66, 94V-0
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Screw Thread :
- M3
- Wire Gauge (Max) :
- 30 AWG
- Number of Positions Per Level :
- 5
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Series :
- Buchanan
- Clamp Material - Plating :
- Brass - Nickel Plated
- Number of Decks :
- 1
- Factory Lead Time :
- 12 Weeks
- Mating Orientation :
- Vertical with Board
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 16 AWG
- Length - Tail :
- 3.5mm
- Number of Levels :
- 1
- Max Current Rating :
- 13.5A
- Wire Termination :
- Screw - Rising Cage Clamp
- Published :
- 2007
- Screw Material - Plating :
- Brass - Nickel Plated
- Safety Approval :
- UL
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Green
- Datasheets
- 284093-5
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
284093-5 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.Among other features are PA66, 94V-0, to name only a few.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.
284093-5 Features
Buchanan series
284093-5 Applications
There are a lot of TE Connectivity AMP Connectors
284093-5 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
