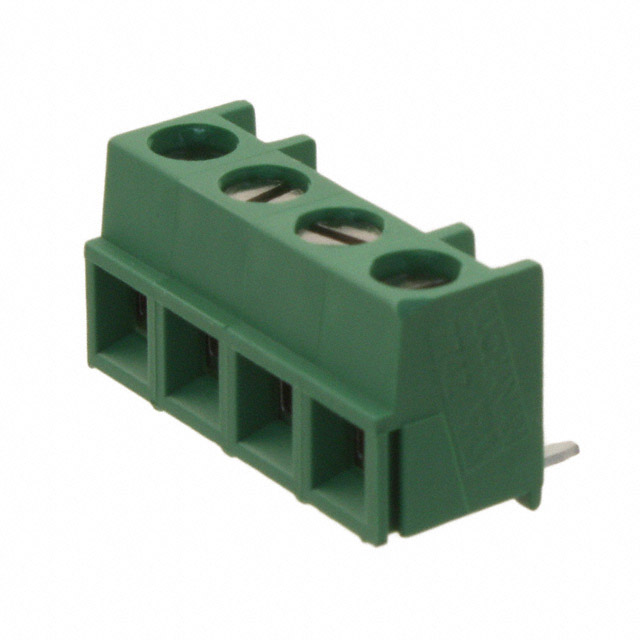

284093-4
Or copy the link below:
- Mfr.Part #
- 284093-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 4POS TOP ENTRY 5MM PCB
- Stock
- 1,155
- In Stock ：
- 1,155
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Factory Lead Time :
- 21 Weeks
- Wire Gauge :
- 16-30 AWG
- Flammability Rating :
- UL94 V-0
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Screw Thread :
- M3
- Connector Type :
- Receptacle
- ECCN Code :
- EAR99
- Wire Termination :
- Screw - Rising Cage Clamp
- ELV :
- Compliant
- Pitch :
- 0.197 5.00mm
- Clamp Material - Plating :
- Brass - Nickel Plated
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 16 AWG
- Screw Material - Plating :
- Brass - Nickel Plated
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Mating Orientation :
- Vertical with Board
- Max Voltage Rating (AC) :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Mount :
- Through Hole
- Min Operating Temperature :
- -40°C
- Mounting Type :
- Through Hole
- Published :
- 2007
- Number of Contacts :
- 4
- Series :
- Buchanan
- Length - Tail :
- 3.5mm
- Width :
- 8.2mm
- Packaging :
- Tray
- Number of Rows :
- 1
- Color :
- Green
- Wire Gauge (Max) :
- 30 AWG
- Contact Material - Plating :
- Brass - Tin Plated
- Radiation Hardening :
- No
- Contact Material :
- Brass
- Number of Decks :
- 1
- Lead Free :
- Lead Free
- Termination :
- Solder
- Number of Ways :
- 4
- Voltage - Rated :
- 300V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Max Operating Temperature :
- 110°C
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 13.5A
- Safety Approval :
- UL
- Feature :
- Interlocking (Side)
- Max Current Rating :
- 13.5A
- Datasheets
- 284093-4
0.197 5.00mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
284093-4 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A temperature below 110°C is best for using it.The device must run at -40°C degrees.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.
284093-4 Features
Buchanan series
284093-4 Applications
There are a lot of TE Connectivity AMP Connectors
284093-4 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
