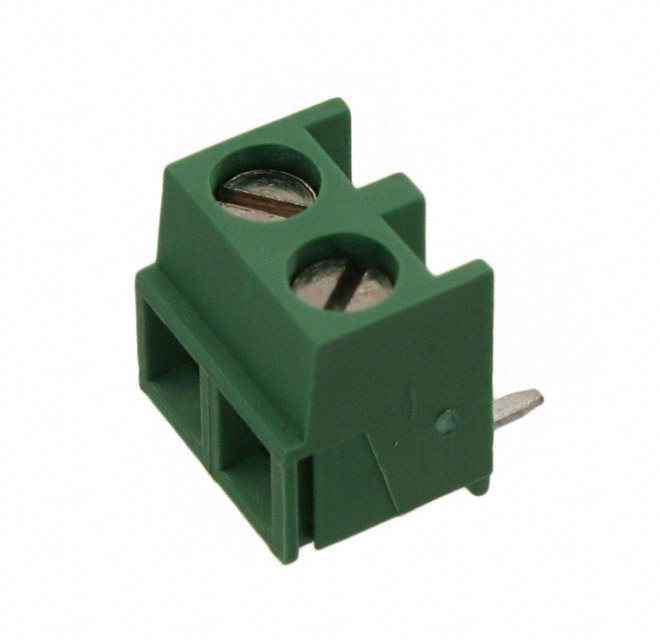

284093-2
Or copy the link below:
- Mfr.Part #
- 284093-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2POS TOP ENTRY 5MM PCB
- Stock
- 3,429
- In Stock ：
- 3,429
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Gauge :
- 16-30 AWG
- Factory Lead Time :
- 12 Weeks
- Clamp Material - Plating :
- Brass - Nickel Plated
- Number of Ways :
- 2
- Length - Tail :
- 3.5mm
- Max Current Rating :
- 13.5A
- HTS Code :
- 8536.69.40.40
- Width :
- 8.2mm
- Wire Termination :
- Screw - Rising Cage Clamp
- Voltage - Rated :
- 300V
- RoHS Status :
- RoHS Compliant
- Length :
- 10mm
- Screw Thread :
- M3
- Series :
- Buchanan
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Plating :
- Tin
- Max Voltage Rating (AC) :
- 300V
- Wire/Cable Gauge :
- 30 AWG
- Lead Free :
- Lead Free
- Safety Approval :
- UL
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Wire Gauge (Max) :
- 30 AWG
- ELV :
- Compliant
- Orientation :
- RIGHT ANGLE
- Wire Gauge (Min) :
- 30 AWG
- Additional Feature :
- PA66, 94V-0
- Number of Decks :
- 1
- ECCN Code :
- EAR99
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Max Operating Temperature :
- 110°C
- Number of Rows :
- 1
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Connector Type :
- Receptacle
- Published :
- 2007
- Contact Material - Plating :
- Brass - Tin Plated
- Mounting Type :
- Through Hole
- Number of Contacts :
- 2
- Current Rating :
- 13.5A
- Min Operating Temperature :
- -40°C
- Packaging :
- Tray
- Radiation Hardening :
- No
- Flammability Rating :
- UL94 V-0
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Screw Material - Plating :
- Brass - Nickel Plated
- Mount :
- Through Hole
- REACH SVHC :
- Unknown
- Termination :
- Solder
- Pitch :
- 0.197 5.00mm
- Color :
- Green
- Max Supply Voltage (AC) :
- 300V
- Feature :
- Interlocking (Side)
- Mating Orientation :
- Vertical with Board
- Datasheets
- 284093-2
0.197 5.00mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
284093-2 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Buchanan Series.Furthermore, there are other features such as PA66, 94V-0, to name a few.Use it below 110°C.A minimum temperature of -40°C must be maintained for the operation of this device.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.
284093-2 Features
Buchanan series
284093-2 Applications
There are a lot of TE Connectivity AMP Connectors
284093-2 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
