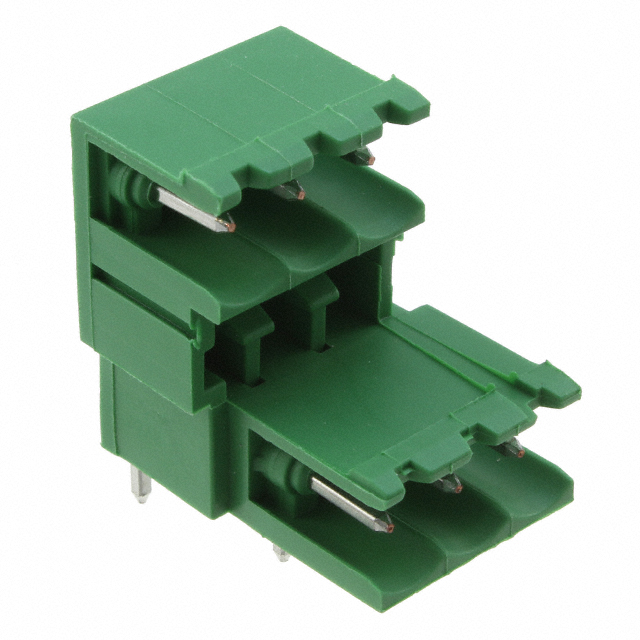

284053-3
Or copy the link below:
- Mfr.Part #
- 284053-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 6POS 90DEG 5.08MM
- Stock
- 23,052
- In Stock ：
- 23,052
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Mount :
- Through Hole
- Feature :
- Interlocking (Side)
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Number of Levels :
- 2
- Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Pitch :
- 0.200 5.08mm
- Number of Rows :
- 2
- Published :
- 2006
- Lifecycle Status :
- ACTIVE (Last Updated: 2 weeks ago)
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~110°C
- ELV :
- Compliant
- Number of Positions :
- 6
- Series :
- Buchanan
- Radiation Hardening :
- No
- Length :
- 17.78mm
- Insulation Height :
- 0.909 23.09mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Per Level :
- 3
- Number of Contacts :
- 6
- Positions Per Level :
- 3
- Voltage - Rated AC :
- 300V
- Packaging :
- Bulk
- Current Rating :
- 15A
- Contact Tail Length :
- 0.138 3.50mm
- Shrouding :
- yes
- Orientation :
- RIGHT ANGLE
- Contact Plating :
- Tin
- Current :
- 12A
- RoHS Status :
- RoHS Compliant
- Max Current Rating :
- 15A
- Max Voltage Rating (AC) :
- 300V
- Connector Type :
- Header
- Length - Tail :
- 3.5mm
- Current - UL :
- 12A
- Voltage :
- 300V
- Factory Lead Time :
- 12 Weeks
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Voltage - Rated :
- 300V
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Header Orientation :
- 90°, Right Angle
- Depth :
- 22.1mm
- Voltage - UL :
- 300V
- Color :
- Green
- Contact Mating Finish :
- Tin
- Housing Color :
- Green
- Termination Style :
- Solder
- Datasheets
- 284053-3
Bulk 0.200 5.08mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
284053-3 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -40°C~110°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (2 Side) products as well.
284053-3 Features
Buchanan series
284053-3 Applications
There are a lot of TE Connectivity AMP Connectors
284053-3 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
