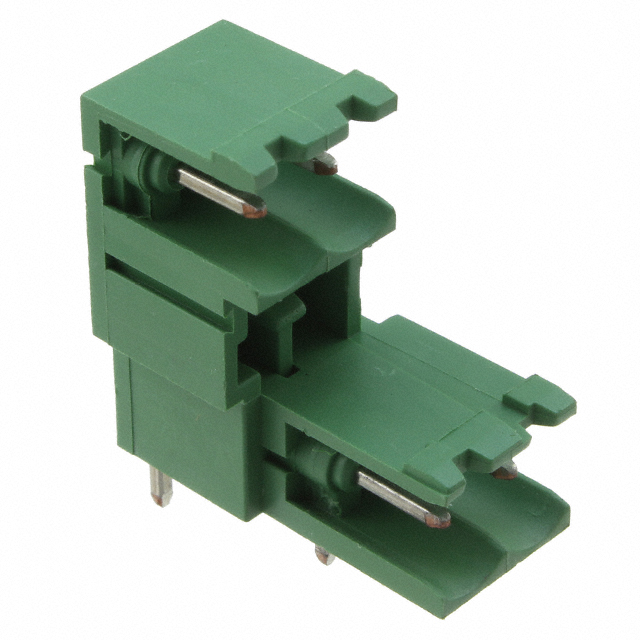

284053-2
Or copy the link below:
- Mfr.Part #
- 284053-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 4POS 90DEG 5.08MM
- Stock
- 456
- In Stock ：
- 456
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Connector Type :
- Header
- Insulation Height :
- 0.909 23.09mm
- Contact Material :
- COPPER ALLOY
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Positions Per Level :
- 2
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Termination Style :
- Solder
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Header Orientation :
- 90°, Right Angle
- Mount :
- Through Hole
- Contact Tail Length :
- 0.138 3.50mm
- Operating Temperature :
- -40°C~110°C
- Number of Ways :
- 24
- Number of Positions :
- 4
- Published :
- 2007
- Length :
- 12.7mm
- Orientation :
- RIGHT ANGLE
- Current :
- 12A
- Max Current Rating :
- 15A
- ECCN Code :
- EAR99
- Safety Approval :
- UL
- Number of Decks :
- 2
- Feature :
- Interlocking (Side)
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Length - Tail :
- 3.5mm
- Voltage :
- 300V
- Fastening Method :
- Connector
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Depth :
- 22.1mm
- Pitch :
- 0.200 5.08mm
- Contact Mating Finish :
- Tin
- Shrouding :
- yes
- Color :
- Green
- Max Voltage Rating (AC) :
- 300V
- Factory Lead Time :
- 12 Weeks
- Voltage - Rated :
- 300V
- Radiation Hardening :
- No
- Number of Rows :
- 2
- Series :
- Buchanan
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Datasheets
- 284053-2
Bulk 0.200 5.08mm Green Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy
284053-2 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (2 Side) products.
284053-2 Features
Buchanan series
284053-2 Applications
There are a lot of TE Connectivity AMP Connectors
284053-2 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
