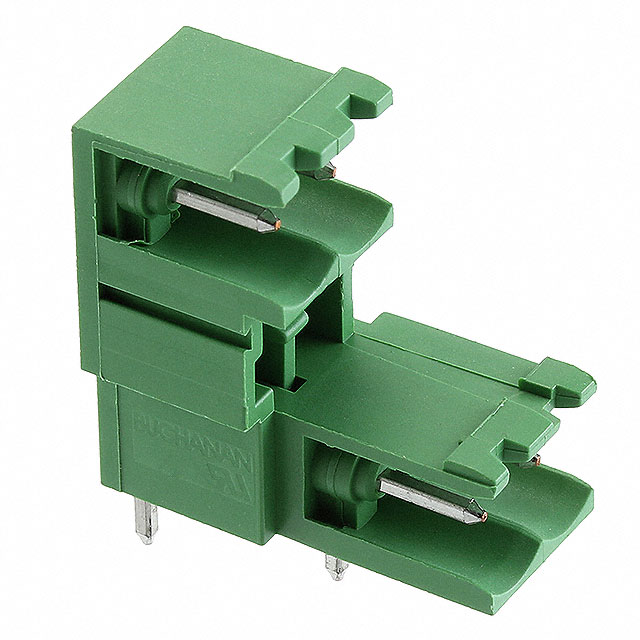

284052-2
Or copy the link below:
- Mfr.Part #
- 284052-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 4POS 90DEG 5MM
- Stock
- 15,662
- In Stock ：
- 15,662
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Mounting Type :
- Through Hole
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Current - UL :
- 12A
- Current :
- 12A
- Radiation Hardening :
- No
- Header Orientation :
- 90°, Right Angle
- Positions Per Level :
- 2
- Feature :
- Interlocking (Side)
- Shrouding :
- yes
- Contact Material :
- Phosphor Bronze
- Current Rating :
- 15A
- Color :
- Green
- Number of Levels :
- 2
- Length :
- 12.5mm
- Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 4
- Contact Mating Finish :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 0.197 5.00mm
- Series :
- Buchanan
- Orientation :
- RIGHT ANGLE
- ELV :
- Compliant
- Voltage - Rated :
- 300V
- Number of Positions :
- 4
- Length - Tail :
- 3.5mm
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Termination Style :
- Solder
- Max Current Rating :
- 15A
- Mount :
- Through Hole
- Number of Rows :
- 2
- Factory Lead Time :
- 12 Weeks
- Insulation Height :
- 0.902 22.90mm
- Depth :
- 22.1mm
- Max Voltage Rating (AC) :
- 300V
- Voltage :
- 300V
- Packaging :
- Bulk
- Contact Tail Length :
- 0.138 3.50mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Operating Temperature :
- -40°C~110°C
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Header
- Contact Plating :
- Tin
- Number of Positions Per Level :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Green
- Voltage - UL :
- 300V
- Voltage - Rated AC :
- 300V
- Published :
- 2007
- Datasheets
- 284052-2
Bulk 0.197 5.00mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze
284052-2 Overview
Header packaging is included.This device has a mounting type of Through Hole.We package the product with a Bulk case.The product is part of the Buchanan Series.This feature makes it more powerful in a number of ways due to its Interlocking (Side) feature.You've got Through Hole mounted on the part.This device runs at -40°C~110°C operating temperature.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Shrouded (2 Side) series.
284052-2 Features
Buchanan series
284052-2 Applications
There are a lot of TE Connectivity AMP Connectors
284052-2 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
