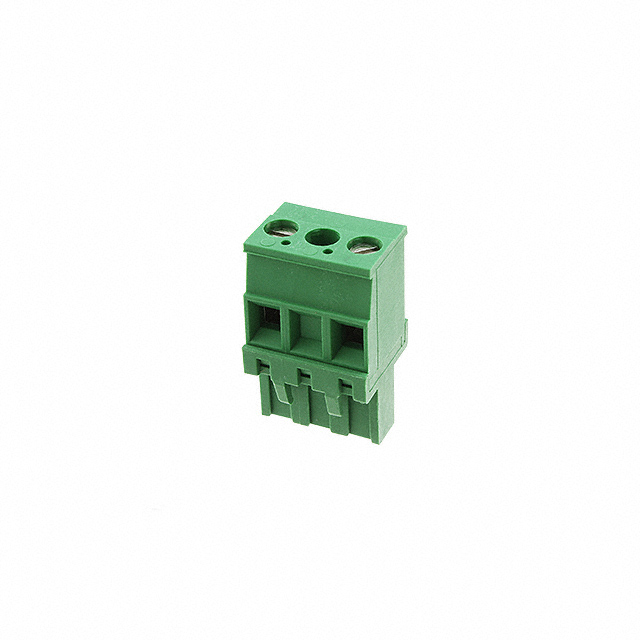

284051-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Thread Size :

M3

Lead Free :

Lead Free

RoHS Status :

RoHS Compliant

Connector Type :

PLUG

Operating Temperature :

-40°C~110°C

ELV :

Compliant

Voltage :

300V

Contact Material :

Phosphor Bronze

Wire Strip Length :

6-7.5mm

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Number of Positions Per Level :

2

Screw Size :

M3

Contact Mating Finish :

Tin

Factory Lead Time :

19 Weeks

Packaging :

Bulk

Color :

Green

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

Number of Contacts :

2

Housing Color :

Green

Wire Gauge or Range - mm² :

0.05-3mm2

Flammability Rating :

UL94 V-0

Current :

15A

Number of Levels :

1

Contact Plating :

Tin

Wire Gauge (Min) :

30 AWG

Current - UL :

15A

Material Flammability Rating :

UL94 V-0

Type :

Plug, Female Sockets

Number of Rows :

1

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Polyamide (PA66), Nylon 6/6

Current Rating :

15A

Voltage - UL :

300V

Termination Style :

Screw - Rising Cage Clamp

Number of Positions :

2

Number of Circuits :

2

Pitch :

0.400 10.16mm

Series :

Buchanan

Radiation Hardening :

No

Published :

2007

Insulation Height :

0.984 25.00mm

Voltage - Rated :

600V

Termination :

Screw

Feature :

Retention Latches (Wire Side)

Plug Wire Entry :

90°

Orientation :

Straight

Wire Gauge (Max) :

30 AWG

Max Current Rating :

15A

Positions Per Level :

2

Mount :

Cable, Free Hanging

Wire Gauge or Range - AWG :

12-30 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
