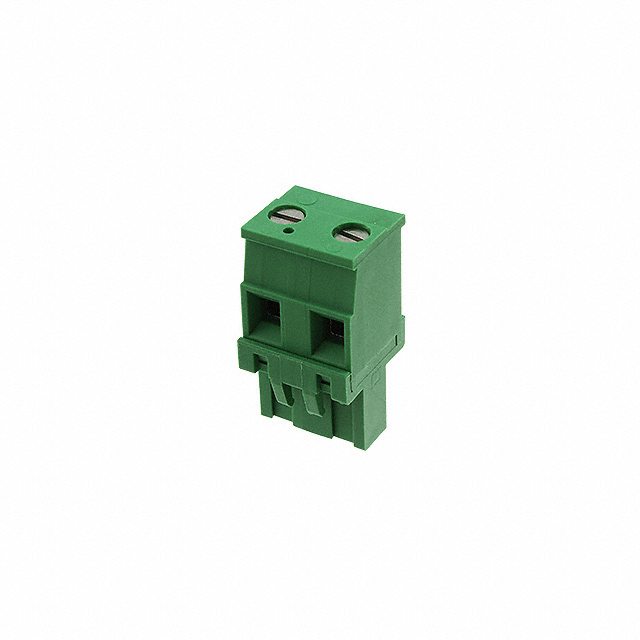

284049-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Wire Strip Length :

6-7.5mm

Thread Size :

M3

Contact Mating Finish :

Tin

Voltage - Rated :

300V

Termination :

Screw

Positions Per Level :

2

Housing Color :

Green

Housing Material :

Polyamide (PA66), Nylon 6/6

Factory Lead Time :

19 Weeks

Contact Plating :

Tin

RoHS Status :

RoHS Compliant

Radiation Hardening :

No

Current :

15A

Max Current Rating :

15A

Contact Material :

Phosphor Bronze

Flammability Rating :

UL94 V-0

Published :

2007

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Orientation :

Straight

Series :

Buchanan

Connector Type :

PLUG

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.300 7.62mm

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Number of Levels :

1

Current - UL :

15A

Wire Gauge or Range - AWG :

12-30 AWG

Number of Positions :

2

Wire Gauge or Range - mm² :

0.05-3mm2

ELV :

Compliant

Number of Rows :

1

Wire Gauge (Max) :

30 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Retention Latches (Wire Side)

Wire Gauge (Min) :

12 AWG

Number of Positions Per Level :

2

Operating Temperature :

-40°C~110°C

Lead Free :

Not Applicable

Voltage - Rated AC :

300V

Screw Size :

M3

Termination Style :

Screw - Rising Cage Clamp

Number of Contacts :

2

Material Flammability Rating :

UL94 V-0

Packaging :

Bulk

Plug Wire Entry :

90°

Voltage - UL :

300V

Insulation Height :

0.984 25.00mm

Current Rating :

15A

Voltage :

300V

Number of Circuits :

2

Type :

Plug, Female Sockets

Mount :

Cable, Free Hanging

Color :

Green
