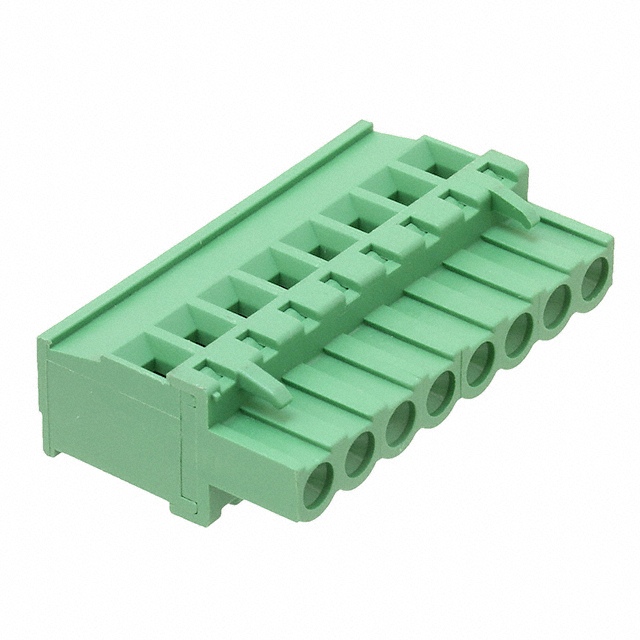

284047-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Color :

Green

Number of Ways :

5

Pitch :

0.200 5.08mm

Operating Temperature :

-40°C~110°C

Safety Approval :

UL

Series :

Buchanan

Number of Positions :

8

Termination Style :

Screw - Rising Cage Clamp

Feature :

Retention Latches (Wire Side)

Current :

15A

RoHS Status :

RoHS Compliant

Additional Feature :

PA66, 94V-0, POLARIZED, LATCHED

Mount :

Cable, Free Hanging

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

ELV :

Compliant

Wire Gauge or Range - mm² :

0.05-3mm2

Plug Wire Entry :

90°

Mounting Type :

Free Hanging (In-Line)

Type :

Plug, Female Sockets

Wire Gauge or Range - AWG :

12-30 AWG

Max Voltage Rating (AC) :

300V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

19 Weeks

Housing Material :

Polyamide (PA66), Nylon 6/6

Max Current Rating :

15A

Insulation Height :

0.984 25.00mm

Published :

2007

Contact Material :

Phosphor Bronze

Voltage :

300V

Voltage - Rated :

300V

Lead Free :

Not Applicable

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Packaging :

Bulk

Radiation Hardening :

No

Number of Contacts :

8

Connector Type :

PLUG

Flammability Rating :

UL94 V-0

Orientation :

Straight

Wire Strip Length :

6-7.5mm

Wire Gauge (Max) :

30 AWG

Number of Decks :

1

Number of Levels :

1

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Mating Finish :

Tin

Voltage - Rated AC :

300V

Number of Rows :

1

Screw Size :

M3

Wire Gauge (Min) :

30 AWG

Current Rating :

15A

Termination :

Screw
