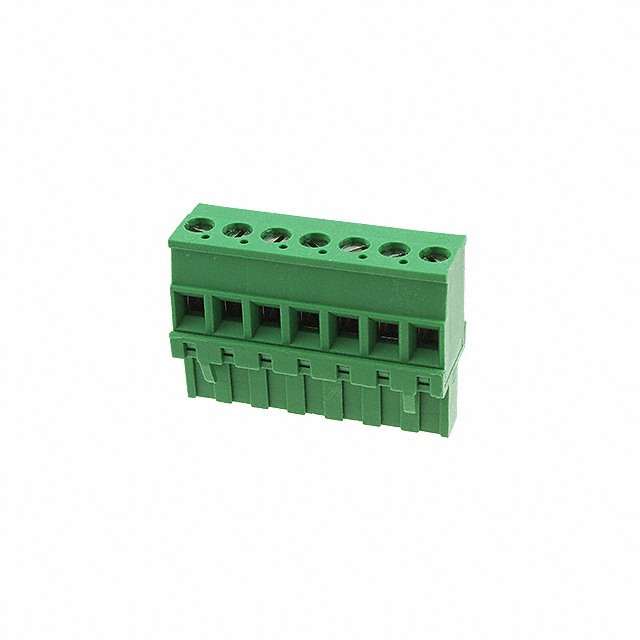

284047-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Voltage - Rated :

300V

Series :

Buchanan

Max Current Rating :

15A

Number of Contacts :

7

Wire Cross Section :

2.5 mm2

Connector Type :

PLUG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Free Hanging (In-Line)

Contact Mating Finish :

Tin

Orientation :

Straight

Operating Temperature :

-40°C~110°C

Wire Gauge or Range - mm² :

0.05-3mm2

Additional Feature :

PA66, 94V-0, POLARIZED, LATCHED

ELV :

Compliant

Packaging :

Bulk

Number of Rows :

1

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Number of Decks :

1

Pitch :

0.200 5.08mm

Number of Ways :

17

Current Rating :

15A

Current :

15A

Feature :

Retention Latches (Wire Side)

Mount :

Cable, Free Hanging

Termination :

Screw

Published :

2005

Number of Levels :

1

Wire Strip Length :

6-7.5mm

Voltage :

300V

Color :

Green

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Contact Material :

Phosphor Bronze

Factory Lead Time :

19 Weeks

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Plug Wire Entry :

90°

Termination Style :

Screw - Rising Cage Clamp

Wire Gauge (Max) :

30 AWG

Wire Gauge or Range - AWG :

12-30 AWG

Type :

Plug, Female Sockets

Wire Gauge (Min) :

12 AWG

HTS Code :

8536.69.40.40

Safety Approval :

UL

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Housing Material :

Polyamide (PA66), Nylon 6/6

Radiation Hardening :

No

Screw Size :

M3

Insulation Height :

0.984 25.00mm

Voltage - Rated AC :

300V
