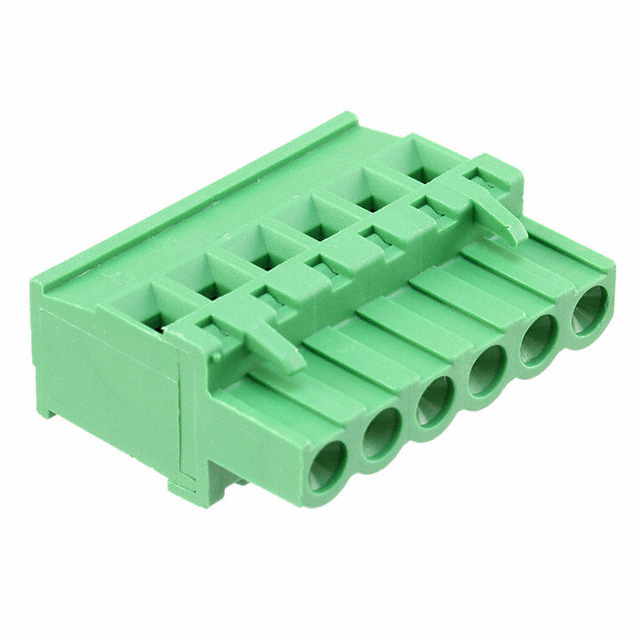

284047-6

Share

Or copy the link below:

Mfr.Part #
284047-6
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 6POS 5.08MM
Stock
300
In Stock :
300

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Plugs and Sockets
Number of Ways :
2
Mount :
Cable, Free Hanging
Connector Type :
PLUG
Plug Wire Entry :
90°
Wire Strip Length :
6-7.5mm
Wire Gauge (Max) :
30 AWG
Contact Material :
Phosphor Bronze
Mounting Type :
Free Hanging (In-Line)
Max Supply Voltage (AC) :
300V
Current :
15A
Length :
30.48mm
Lead Free :
Not Applicable
Contact Mating Finish :
Tin
Number of Positions :
6
Feature :
Retention Latches (Wire Side)
Depth :
12.5mm
Pitch :
0.200 5.08mm
Number of Levels :
1
Number of Rows :
1
Orientation :
Straight
Termination Style :
Screw - Rising Cage Clamp
Wire Gauge (Min) :
12 AWG
Voltage - Rated :
300V
Color :
Green
Insulation Height :
0.984 25.00mm
Current Rating :
15A
Wire Gauge or Range - AWG :
12-30 AWG
Factory Lead Time :
21 Weeks
Voltage - Rated AC :
300V
Material Flammability Rating :
UL94 V-0
Housing Material :
Polyamide (PA66), Nylon 6/6
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Operating Temperature :
-40°C~110°C
Series :
Buchanan
RoHS Status :
RoHS Compliant
Flammability Rating :
UL94 V-0
Number of Contacts :
6
Radiation Hardening :
No
Safety Approval :
UL
Voltage :
300V
ECCN Code :
EAR99
Packaging :
Bulk
ELV :
Compliant
Screw Size :
M3
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Max Current Rating :
15A
Wire Gauge or Range - mm² :
0.05-3mm2
Published :
2007
Number of Decks :
1
Type :
Plug, Female Sockets
Torque - Screw :
0.79 Nm (7.0 Lb-In)
Termination :
Screw
Datasheets
284047-6
Introducing Headers, Plugs and Sockets TE Connectivity AMP Connectors 284047-6 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Operating Temperature:-40°C~110°C, Voltage:300V, Type:Plug, Female Sockets, 284047-6 pinout, 284047-6 datasheet PDF, 284047-6 amp .Beyond Headers, Plugs and Sockets TE Connectivity AMP Connectors 284047-6 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 284047-6


Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze

284047-6 Overview


Packaging for this item is Plug.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.In many ways, its Retention Latches (Wire Side) feature makes it more powerful.Cable, Free Hanging is used to mount the part.In this case, the device operates at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

284047-6 Features


Buchanan series


284047-6 Applications


There are a lot of TE Connectivity AMP Connectors
284047-6 Terminal Blocks applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
