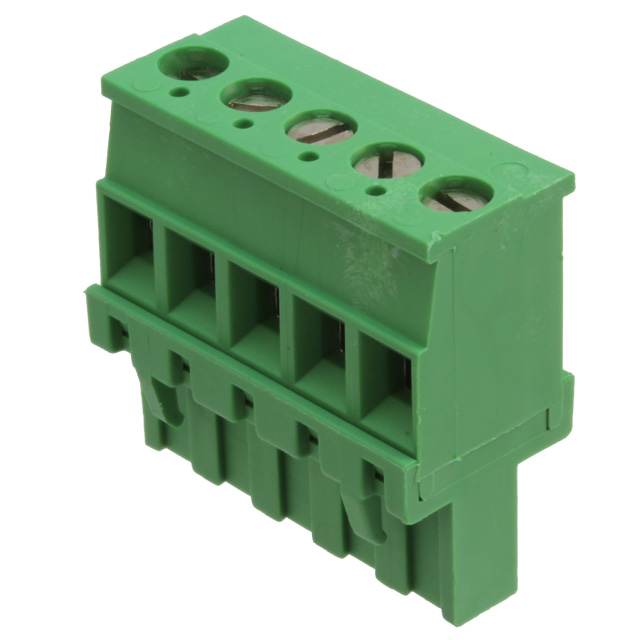

284047-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Depth :

12.5mm

Orientation :

Straight

Housing Material :

Polyamide (PA66), Nylon 6/6

Length :

24.4mm

Number of Levels :

1

Max Voltage Rating (AC) :

300V

Current Rating :

15A

Packaging :

Bulk

Number of Contacts :

5

Connector Type :

PLUG

Lead Free :

Not Applicable

Radiation Hardening :

No

Insulation Height :

0.984 25.00mm

Wire Gauge (Max) :

30 AWG

Contact Mating Finish :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Screw

Color :

Green

Voltage - Rated AC :

300V

Type :

Plug, Female Sockets

Current :

15A

Termination Style :

Screw - Rising Cage Clamp

Contact Material :

Phosphor Bronze

Flammability Rating :

UL94 V-0

Number of Ways :

15

Wire Gauge (Min) :

12 AWG

Feature :

Retention Latches (Wire Side)

Pitch :

0.200 5.08mm

Factory Lead Time :

19 Weeks

Operating Temperature :

-40°C~110°C

Plug Wire Entry :

90°

Number of Decks :

1

Wire Gauge or Range - AWG :

12-30 AWG

Screw Size :

M3

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated :

300V

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Max Current Rating :

15A

Additional Feature :

PA66, 94V-0, POLARIZED, LATCHED

Voltage :

300V

Number of Rows :

1

Published :

2007

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.05-3mm2

Mount :

Cable, Free Hanging

ELV :

Compliant

RoHS Status :

RoHS Compliant

ECCN Code :

EAR99

Wire Strip Length :

6-7.5mm

Max Supply Voltage (AC) :

300V

Safety Approval :

UL

Series :

Buchanan
