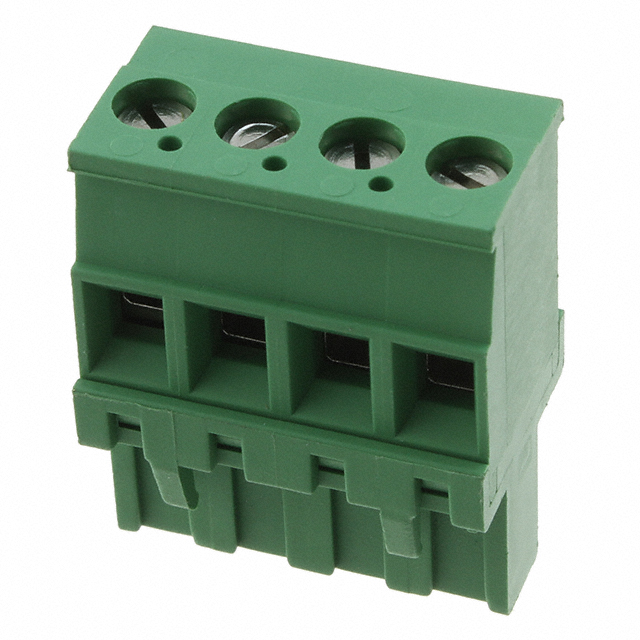

284047-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Mount :

Cable, Free Hanging

Wire Gauge (Max) :

30 AWG

Voltage - UL :

300V

Published :

2007

Screw Size :

M3

Thread Size :

M3

Number of Circuits :

4

Color :

Green

Pitch :

0.200 5.08mm

Max Supply Voltage (AC) :

300V

ELV :

Compliant

Wire Gauge (Min) :

30 AWG

Positions Per Level :

4

Plug Wire Entry :

90°

Packaging :

Bulk

Number of Levels :

1

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Housing Material :

Polyamide (PA66), Nylon 6/6

Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

Length :

20.32mm

Wire Gauge or Range - mm² :

0.05-3mm2

Factory Lead Time :

19 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Current Rating :

15A

Series :

Buchanan

Current :

15A

Current Rating :

15A

Type :

Plug, Female Sockets

Termination Style :

Screw - Rising Cage Clamp

Wire Strip Length :

6-7.5mm

Voltage - Rated AC :

300V

Connector Type :

PLUG

Operating Temperature :

-40°C~110°C

Material Flammability Rating :

UL94 V-0

Number of Positions :

4

RoHS Status :

RoHS Compliant

Max Voltage Rating (AC) :

300V

Current - UL :

15A

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Housing Color :

Green

Radiation Hardening :

No

Contact Plating :

Tin

Number of Contacts :

4

Depth :

12.5mm

Lead Free :

Not Applicable

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated :

300V

Voltage :

300V

Number of Positions Per Level :

4

Orientation :

Straight

Wire Gauge or Range - AWG :

12-30 AWG

Feature :

Retention Latches (Wire Side)

Insulation Height :

0.984 25.00mm

Termination :

Screw

Number of Rows :

1

Contact Mating Finish :

Tin
