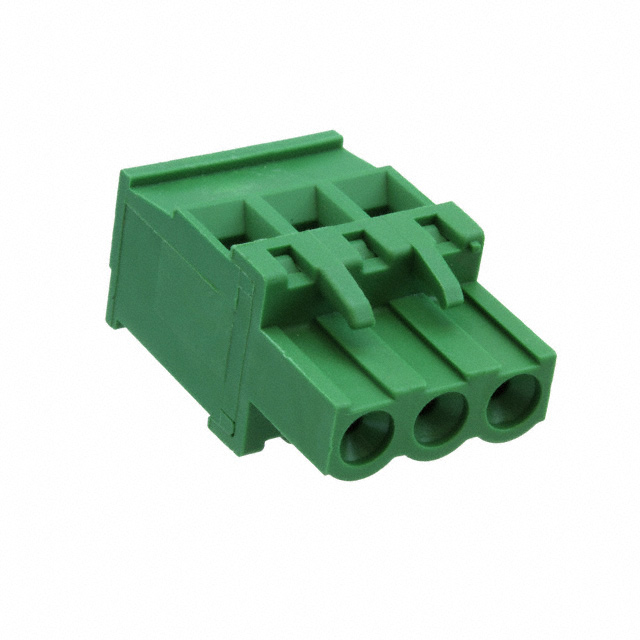

284047-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Plug Wire Entry :

90°

Housing Material :

Polyamide (PA66), Nylon 6/6

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge or Range - mm² :

0.05-3mm2

Termination :

Screw

Contact Mating Finish :

Tin

Voltage :

300V

Connector Type :

PLUG

Mount :

Cable, Free Hanging

Factory Lead Time :

19 Weeks

Safety Approval :

UL

Contact Material :

Phosphor Bronze

Color :

Green

Voltage - Rated :

300V

Insulation Height :

0.984 25.00mm

Feature :

Retention Latches (Wire Side)

Wire Gauge (Min) :

12 AWG

Radiation Hardening :

No

Number of Rows :

1

Voltage - Rated AC :

300V

ELV :

Compliant

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Flammability Rating :

UL94 V-0

Current Rating :

15A

Wire Cross Section :

2.5 mm2

Pitch :

0.200 5.08mm

Number of Levels :

1

Number of Ways :

13

Wire Strip Length :

6-7.5mm

RoHS Status :

RoHS Compliant

Number of Decks :

1

ECCN Code :

EAR99

Screw Size :

M3

Max Current Rating :

15A

Type :

Plug, Female Sockets

Current :

15A

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Termination Style :

Screw - Rising Cage Clamp

Published :

2007

Wire Gauge or Range - AWG :

12-30 AWG

Series :

Buchanan

Number of Contacts :

3

Lead Free :

Not Applicable

Mounting Type :

Free Hanging (In-Line)

Additional Feature :

PA66, 94V-0, POLARIZED, LATCHED

Operating Temperature :

-40°C~110°C

Packaging :

Bulk

Orientation :

Straight

Wire Gauge (Max) :

30 AWG

Material Flammability Rating :

UL94 V-0
