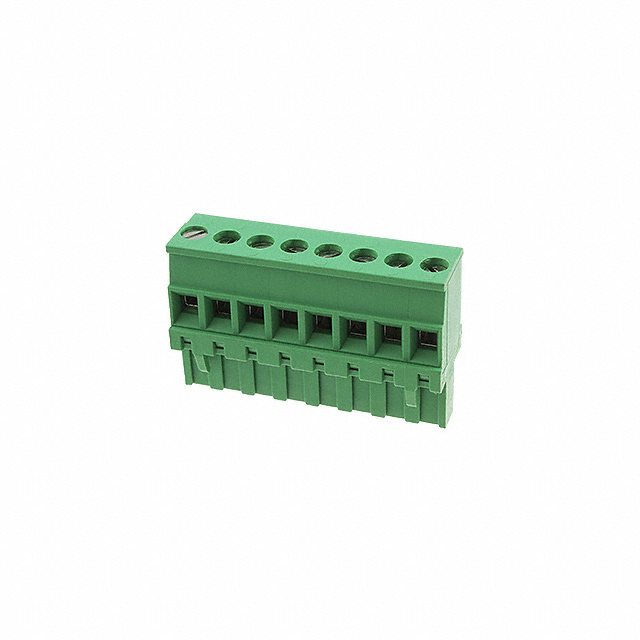

284046-8
Or copy the link below:
- Mfr.Part #
- 284046-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 8POS 90DEG 5MM
- Stock
- 36,716
- In Stock ：
- 36,716
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- ECCN Code :
- EAR99
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Wire Gauge (Max) :
- 30 AWG
- Wire Gauge (Min) :
- 12 AWG
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Plug Wire Entry :
- 90°
- Color :
- Green
- Voltage - Rated AC :
- 300V
- Termination :
- Screw
- Mounting Type :
- Free Hanging (In-Line)
- Current Rating :
- 15A
- Operating Temperature :
- -40°C~110°C
- Published :
- 2007
- Contact Material :
- Phosphor Bronze
- Additional Feature :
- PA 66, 94V-0, LATCHED, POLARIZED
- RoHS Status :
- RoHS Compliant
- Number of Decks :
- 1
- Pitch :
- 0.197 5.00mm
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Type :
- Plug, Female Sockets
- Termination Style :
- Screw - Rising Cage Clamp
- Screw Size :
- M3
- Number of Contacts :
- 8
- Wire Cross Section :
- 2.5 mm2
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Voltage :
- 300V
- Wire Gauge or Range - AWG :
- 12-30 AWG
- Wire Strip Length :
- 6-7.5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 300V
- Orientation :
- Straight
- Mount :
- Cable, Free Hanging
- ELV :
- Compliant
- Max Current Rating :
- 15A
- Wire Gauge or Range - mm² :
- 0.05-3mm2
- Safety Approval :
- UL
- Connector Type :
- PLUG
- Packaging :
- Bulk
- Number of Levels :
- 1
- Insulation Height :
- 0.984 25.00mm
- Factory Lead Time :
- 22 Weeks
- Number of Ways :
- 18
- Current :
- 15A
- Series :
- Buchanan
- Feature :
- Retention Latches (Wire Side)
- Lead Free :
- Not Applicable
- Radiation Hardening :
- No
- Contact Mating Finish :
- Tin
- Datasheets
- 284046-8
Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze
284046-8 Overview
The product is packaged in Plug.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.To name a few, there is also PA 66, 94V-0, LATCHED, POLARIZED.There are a number of advantages to its Retention Latches (Wire Side) feature.Part Cable, Free Hanging is mounted to the part.As a result, the device runs at -40°C~110°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
284046-8 Features
Buchanan series
284046-8 Applications
There are a lot of TE Connectivity AMP Connectors
284046-8 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
