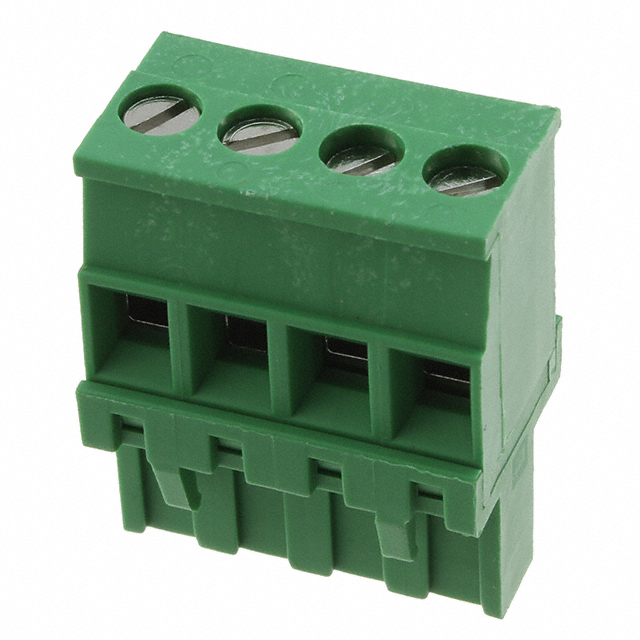

284046-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Packaging :

Bulk

Safety Approval :

UL

Flammability Rating :

UL94 V-0

Number of Decks :

1

Current Rating :

15A

Operating Temperature :

-40°C~110°C

Wire Gauge (Max) :

30 AWG

Voltage :

300V

Mount :

Cable, Free Hanging

Series :

Buchanan

Lifecycle Status :

ACTIVE (Last Updated: 2 weeks ago)

Mounting Type :

Free Hanging (In-Line)

Wire Gauge or Range - AWG :

12-30 AWG

Contact Material :

Phosphor Bronze

Published :

2007

Contact Mating Finish :

Tin

Number of Ways :

24

Wire Gauge (Min) :

12 AWG

Termination :

Screw

Current :

15A

Number of Levels :

1

Voltage - Rated AC :

300V

Feature :

Retention Latches (Wire Side)

Plug Wire Entry :

90°

Wire Strip Length :

6-7.5mm

Factory Lead Time :

19 Weeks

Voltage - Rated :

300V

Termination Style :

Screw - Rising Cage Clamp

Radiation Hardening :

No

RoHS Status :

RoHS Compliant

Screw Size :

M3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

ECCN Code :

EAR99

Max Current Rating :

15A

Material Flammability Rating :

UL94 V-0

Orientation :

Straight

Pitch :

0.197 5.00mm

Insulation Height :

0.984 25.00mm

Wire Gauge or Range - mm² :

0.05-3mm2

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire Cross Section :

2.5 mm2

Connector Type :

PLUG

Type :

Plug, Female Sockets

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Color :

Green

Number of Contacts :

4

ELV :

Compliant
