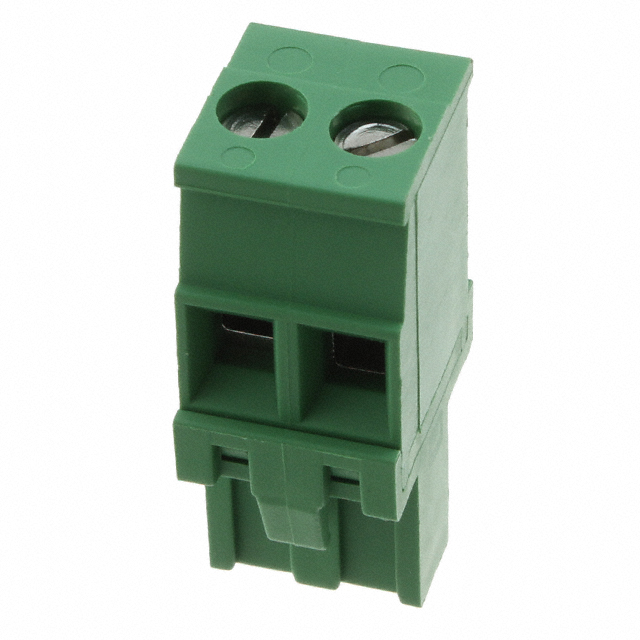

284046-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Termination :

Screw

Termination Style :

Screw - Rising Cage Clamp

ECCN Code :

EAR99

Mount :

Cable, Free Hanging

Flammability Rating :

UL94 V-0

Number of Levels :

1

Color :

Green

Insulation Height :

0.984 25.00mm

Material Flammability Rating :

UL94 V-0

Number of Rows :

1

Feature :

Retention Latches (Wire Side)

Number of Decks :

1

Wire Gauge (Min) :

30 AWG

Contact Material :

Phosphor Bronze

Operating Temperature :

-40°C~110°C

Max Current Rating :

15A

Wire Gauge or Range - AWG :

12-30 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Ways :

22

Wire Gauge or Range - mm² :

0.05-3mm2

Mounting Type :

Free Hanging (In-Line)

Current :

15A

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Wire Strip Length :

6-7.5mm

Type :

Plug, Female Sockets

RoHS Status :

RoHS Compliant

Series :

Buchanan

Packaging :

Bulk

Pitch :

0.197 5.00mm

Screw Size :

M3

Plug Wire Entry :

90°

Number of Contacts :

2

Wire Gauge (Max) :

30 AWG

HTS Code :

8536.69.40.40

Voltage - Rated AC :

300V

Connector Type :

PLUG

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Voltage :

300V

Safety Approval :

UL

Lead Free :

Not Applicable

Additional Feature :

PA 66, 94V-0, LATCHED, POLARIZED

Orientation :

Straight

Voltage - Rated :

300V

Published :

2007

Radiation Hardening :

No

Factory Lead Time :

19 Weeks

Contact Mating Finish :

Tin

ELV :

Compliant

Current Rating :

15A

Housing Material :

Polyamide (PA66), Nylon 6/6
