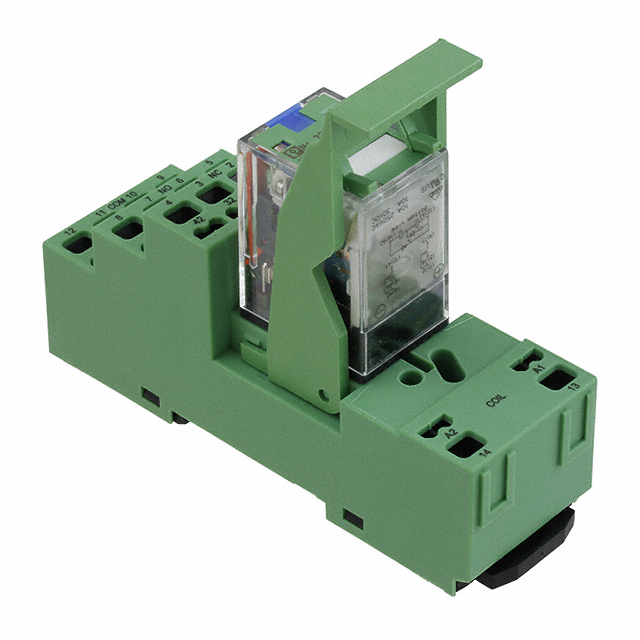

2834685

Manufacturer :

Phoenix Contact

Product Category :

Power Relays, Over 2 Amps

Switching Voltage :

250VAC -Max

Mount :

DIN Rail, Socket

Coil Voltage (DC) :

24V

Turn On Delay Time :

13 ms

Current Rating :

10A

RoHS Status :

RoHS Compliant

Termination :

Screw

Feature :

Diode, Lighted Indicator, Socket Included

Published :

2005

Max Operating Temperature :

60°C

Throw Configuration :

DPDT

Relay Type :

GENERAL PURPOSE

Coil Voltage :

24VDC

Turn-Off Delay Time :

5 ms

Contact Material :

Silver (Ag)

Max Voltage Rating (AC) :

250V

Height :

95mm

Coil Type :

Non Latching

Termination Style :

Spring Terminal

Input Current :

38mA

Release Time :

5ms

Operate Time :

13ms

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

84mm

Weight :

125.999994g

Contact Rating (Current) :

10A

Depth :

31mm

Voltage - Rated AC :

250V

Packaging :

Bulk

Factory Lead Time :

3 Weeks

Mounting Type :

DIN Rail

Min Operating Temperature :

-25°C

Max Voltage Rating (DC) :

125V

Max Input Voltage :

24V

Operating Temperature :

-25°C~60°C

Max Current Rating :

10A

Coil Resistance :

631.58Ohm

Contact Form :

DPDT (2 Form C)

Package / Case :

Module

Number of Pins :

8

Coil Current :

38mA
