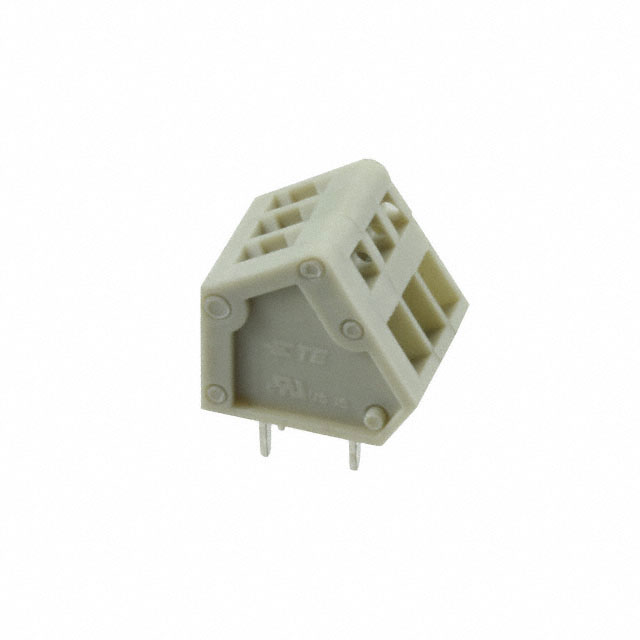

2834085-2
Or copy the link below:
- Mfr.Part #
- 2834085-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK 3POS 45DEG 2.54MM PCB
- Stock
- 10,122
- In Stock ：
- 10,122
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Contact Plating :
- Tin
- REACH SVHC :
- No SVHC
- Feature :
- Interlocking (Side)
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Connector, Receptacle
- Published :
- 2015
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Approval Agency :
- UL
- Factory Lead Time :
- 17 Weeks
- Terminal and Terminal Block Type :
- BARRIER STRIP TERMINAL BLOCK
- Packaging :
- Tray
- Mating Orientation :
- 45° (135°) Angle with Board
- Wire Termination :
- Screwless - Spring Cage, Tension Clamp
- Wire/Cable Gauge :
- 20 AWG
- Number of Positions :
- 3
- Wire Gauge :
- 20-28 AWG
- Max Current Rating :
- 4A
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Current Rating :
- 4A
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mounting Type :
- Through Hole
- Number of Levels :
- 1
- Operating Temperature :
- -40°C~105°C
- Termination :
- Through Hole
- Contact Material :
- Copper
- Pitch :
- 0.100 2.54mm
- Voltage - Rated :
- 150V
- Contact Material - Plating :
- Brass - Tin Plated
- Current Rating :
- 4A
- Sealable :
- No
- Datasheets
- 2834085-2
0.100 2.54mm Tray Polyamide (PA66), Nylon 6/6 Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-28 AWG
2834085-2 Overview
The product is packaged in Connector, Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There are a number of advantages to its Interlocking (Side) feature.As a result, the device runs at -40°C~105°C Operating Temperature.
2834085-2 Features
2834085-2 Applications
There are a lot of TE Connectivity AMP Connectors
2834085-2 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
