2834078-2
Or copy the link below:
- Mfr.Part #
- 2834078-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description

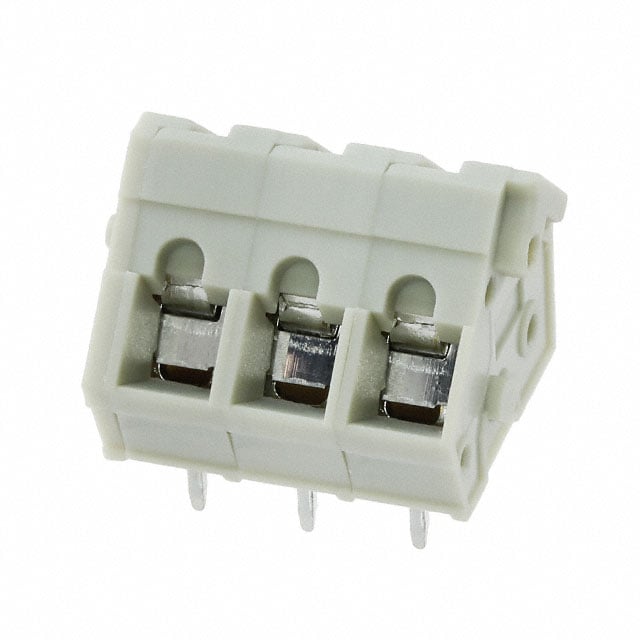

- TERM BLOCK 3POS 45DEG 5MM PCB
- Stock
- 3,296
- In Stock ：
- 3,296
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Contact Plating :
- Tin
- Number of Levels :
- 1
- Mounting Type :
- Through Hole
- Connector Type :
- Connector, Receptacle
- Wire/Cable Gauge :
- 14 AWG
- Terminal and Terminal Block Type :
- BARRIER STRIP TERMINAL BLOCK
- Feature :
- Interlocking (Side)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- Copper
- Contact Current Rating :
- 16A
- Sealable :
- No
- Factory Lead Time :
- 17 Weeks
- Contact Material - Plating :
- Brass - Tin Plated
- Packaging :
- Tray
- Mating Orientation :
- 45° (135°) Angle with Board
- Pitch :
- 0.197 5.00mm
- RoHS Status :
- RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Current Rating :
- 16A
- Published :
- 2015
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Wire Gauge :
- 14-28 AWG
- Number of Positions :
- 3
- Operating Temperature :
- -40°C~105°C
- Approval Agency :
- UL
- Wire Termination :
- Screwless - Spring Cage, Tension Clamp
- Termination :
- Through Hole
- Voltage - Rated :
- 300V
- Max Current Rating :
- 16A
- REACH SVHC :
- No SVHC
- Datasheets
- 2834078-2
0.197 5.00mm Tray Polyamide (PA66), Nylon 6/6 Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 14-28 AWG
2834078-2 Overview
Currently, it is packaged in Connector, Receptacle.The mounting type of the device is Through Hole.A Tray case is used to package the product.A number of features make the Interlocking (Side) feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.
2834078-2 Features
2834078-2 Applications
There are a lot of TE Connectivity AMP Connectors
2834078-2 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
