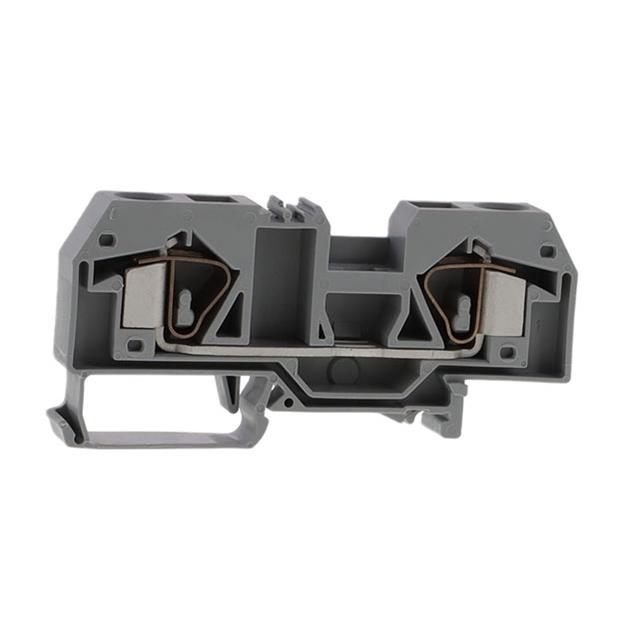

283-901

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Length :

94.5

Termination Style :

Push In, Spring

Rated current In :

76

Nominal voltage :

800V

Voltage - IEC :

800V

Current Rating (Max) :

76(A)

Packaging :

Box

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connectable conductor cross section solid-core :

0.2 - 16

Contamination level :

3

Cross section (flexible) (min.) :

0.20mm²

Wire Gauge or Range - AWG :

6-24 AWG

Clamp width :

12mm

Mounting Type :

DIN Rail

Content :

20pc(s)

Min. stripping length :

16mm

Package :

Bulk

Number of Levels :

1

Product Depth (mm) :

12(mm)

Dim :

(W x H) 12 mm x 37.50 mm

Manufacturer :

Wago

AWG (min.) :

24

Stripping Length :

16mm ~ 17mm

Connectable conductor cross section multi-wired :

0.2 - 16

Inflammability class of insulation material according to with UL94 :

V0

Note :

n/a

Number of Circuits :

1

Contact Pitch (mm) :

Not Required(mm)

Configuration :

L

Disconnect Type :

-

Connection :

Pull spring

Nominal current - rounded value :

76A

Manufacturer part # :

283-901

Cross section (inflexible) (min.) :

0.20mm²

Terminal - Width :

12.0mm

Product Status :

Active

Housing Color :

Gray

Material Flammability Rating :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

AWG max. :

6

Base Product Number :

283

Operating Voltage (Max) :

800V

Product Height (mm) :

37.5(mm)

Nominal current :

76A

Cross section (inflexible) (max.) :

16mm²

Current - IEC :

76 A

Height :

37.50mm

Stripping length (max.) :

17mm

Approvals :

CSA, UR

Rad Hardened :

No

Mounting Style :

T DIN RAIL

Series :

n/a

Width :

12mm

Features :

-

Cross section (flexible) (max.) :

16mm²

Voltage - UL :

-

No. of rows :

1

Depth :

37.5

Color :

Gray

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 16

Number of Positions :

2

Type :

Standard Block

Fuse Type :

-

Industrial packaging :

yes

Pins per row :

2

Wire Gauge :

6-24(AWG)

Number of Contacts :

2(POS)

Number of Contact Rows :

1

Product Length (mm) :

94.5(mm)

RoHS :

yes

Mounting :

Din-Rail
