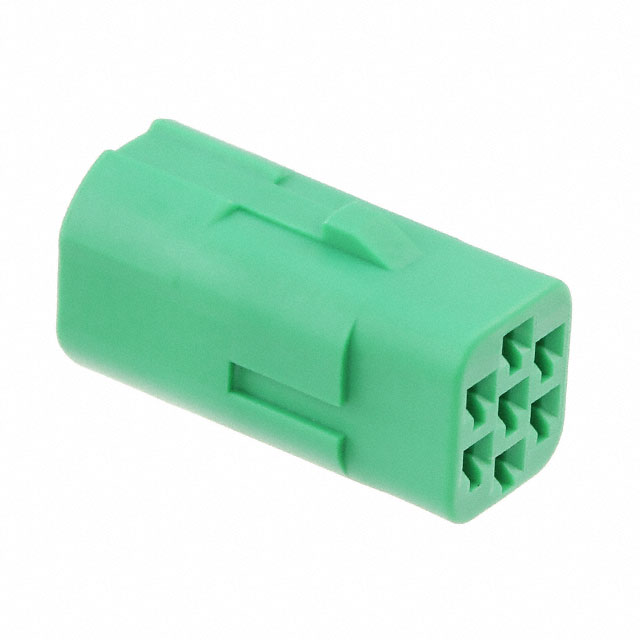

2822343-1
Or copy the link below:
- Mfr.Part #
- 2822343-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 7POS 2.40MM
- Stock
- 574
- In Stock ：
- 574
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Fastening Type :
- Locking Ramp
- RoHS Status :
- RoHS Compliant
- Depth :
- 16.5mm
- Body Material :
- PBT
- Published :
- 2011
- Contact Termination :
- Crimp
- Gender :
- Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- PBT
- Note :
- Contacts Not Included
- Number of Positions :
- 7
- Series :
- Mini Multilock
- Max Operating Temperature :
- 221°C
- Color :
- Green
- Min Operating Temperature :
- -40°C
- Polarized :
- yes
- Connector Type :
- PLUG
- Pitch :
- 0.094 2.40mm
- Circuit Application :
- Power
- Mating Tab Width :
- 8.001mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Packaging :
- Bulk
- Length :
- 8.001mm
- Width :
- 9.1948mm
- Contact Type :
- Female Socket
- Serviceable :
- No
- Orientation :
- Straight
- Factory Lead Time :
- 19 Weeks
- Number of Rows :
- 3
- Height :
- 16.5mm
- Hybrid Connector :
- No
- Number of Contacts :
- 7
- Mount :
- PCB
- Mounting Type :
- Free Hanging (In-Line)
- Row Spacing :
- 0.079 (2.00mm)
- Datasheets
- 2822343-1
3 Rows Plug Bulk Green 7 Positions Free Hanging (In-Line) Female Socket Crimp Mini Multilock PBT
2822343-1 Overview
A Plug package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the Mini Multilock Series of products.PCB mounts the part.
2822343-1 Features
Mini Multilock series
2822343-1 Applications
There are a lot of TE Connectivity AMP Connectors
2822343-1 Rectangular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
