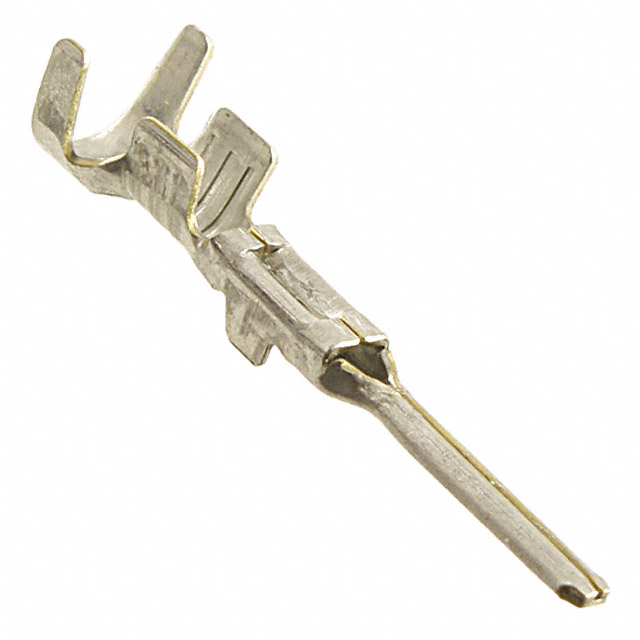

282109-1
Or copy the link below:
- Mfr.Part #
- 282109-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN TAB 15-18AWG CRIMP TIN
- Stock
- 18
- In Stock ：
- 18
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- Depth :
- 5.2mm
- Max Operating Temperature :
- 125°C
- Mating Tab Width :
- 1.5mm
- ELV :
- Compliant
- Wire Gauge :
- 15-18 AWG
- ECCN Code :
- EAR99
- Max Current Rating :
- 14A
- Wire Gauge (Max) :
- 16 AWG
- Gender :
- Male
- Pitch :
- 4.2mm
- Wire Gauge (Min) :
- 18 AWG
- Housing Color :
- Natural
- Tab Thickness :
- 800μm
- Current Rating :
- 11A
- Mount :
- Cable, Through Hole
- Connector Type :
- Connector, PCB, Signal, Tab
- Sealable :
- yes
- Contact Finish :
- Tin
- REACH SVHC :
- No SVHC
- Height :
- 4.7mm
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 14 Weeks
- Lead Free :
- Not Applicable
- Radiation Hardening :
- No
- Series :
- SuperSeal
- Length :
- 22.7mm
- RoHS Status :
- RoHS Compliant
- HTS Code :
- 8536.90.40.00
- Contact Material :
- Brass
- Voltage - Rated DC :
- 24V
- Orientation :
- Straight
- Pin or Socket :
- Tab
- Number of Rows :
- 2
- Pbfree Code :
- yes
- Number of Pins :
- 1
- Number of Contacts :
- 10
- Contact Resistance :
- 3mOhm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Max Voltage Rating (AC) :
- 600V
- Published :
- 1995
- Packaging :
- Tape and Reel (TR)
- Housing Material :
- Nylon
- Insulation Diameter :
- 3.302 mm
- Ratings :
- IP67
- Contact Termination :
- Crimp
- Shielding :
- Unshielded
- Wire/Cable Gauge :
- 15 AWG
- Datasheets
- 282109-1
