282104-1
Or copy the link below:
- Mfr.Part #
- 282104-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 2POS 6.00MM
- Stock
- 36,360
- In Stock ：
- 36,360
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Packaging :
- Bulk
- Depth :
- 42mm
- Mount :
- Cable, Free Hanging
- Circuit Application :
- Signal
- Housing Material :
- Polyamide
- DIN Conformance :
- No
- Pbfree Code :
- yes
- Number of Rows :
- 1
- Contact Plating :
- Tin
- Contact Termination :
- Crimp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated DC :
- 24V
- HTS Code :
- 8536.69.40.30
- Mating Tab Width :
- 1.4986mm
- Ratings :
- IP67
- ELV :
- Compliant
- Hybrid Connector :
- No
- Number of Positions :
- 2
- Material :
- Nylon
- Contact Type :
- Tab
- Min Operating Temperature :
- -40°C
- Wire Gauge (Min) :
- 14 AWG
- Factory Lead Time :
- 15 Weeks
- Contact Resistance :
- 3mOhm
- Fastening Type :
- Locking Ramp
- Wire Gauge (Max) :
- 22 AWG
- Color :
- Black
- Published :
- 1997
- Note :
- Contacts Not Included
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- REACH SVHC :
- No SVHC
- Insulation Resistance :
- 200mOhm
- Max Operating Temperature :
- 125°C
- Pitch :
- 0.236 6.00mm
- Series :
- SuperSeal
- Total Number of Contacts :
- 2
- Orientation :
- Straight
- Empty Shell :
- No
- Polarized :
- yes
- IEC Conformance :
- No
- Connector Type :
- Receptacle
- Length :
- 19.8mm
- Gender :
- FEMALE
- Mounting Type :
- Free Hanging (In-Line)
- RoHS Status :
- RoHS Compliant
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Width :
- 13.7922mm
- ECCN Code :
- EAR99
- Height :
- 42.0116mm
- Option :
- GENERAL PURPOSE
- Lead Free :
- Lead Free
- Current Rating :
- 14A
- Filter Feature :
- No
- Datasheets
- 282104-1
1 Rows Receptacle Bulk Black 2 Positions Free Hanging (In-Line) Tab Crimp Superseal Polyamide
282104-1 Description

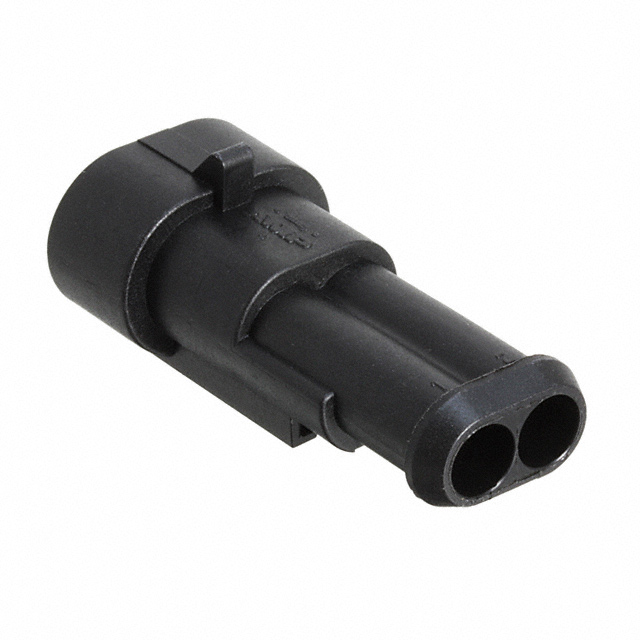

The 282104-1 from TE Connectivity is an AMP Superseal 1.5mm series tab housing for male terminals. It is a sealed 2 position black colour housing with pitch spacing of 6mm.
282104-1 Features
-
Integrated with locking feature
-
Housing material is polyamide 66
-
Suitable for wire to wire connector system
-
Single row housing suitable with mating tab width of 1.5mm
282104-1 Applications
-
Automotive
