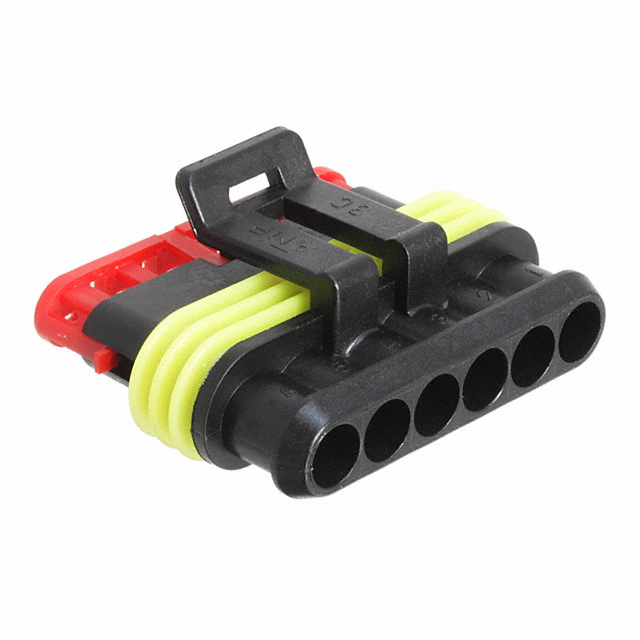

282090-1
Or copy the link below:
- Mfr.Part #
- 282090-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 6POS 6.00MM
- Stock
- 445
- In Stock ：
- 445
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Ratings :
- IP67
- IEC Conformance :
- No
- Gender :
- Receptacle
- Mating Tab Width :
- 1.4986mm
- Pitch :
- 0.236 6.00mm
- Lead Free :
- Not Applicable
- Packaging :
- Bulk
- DIN Conformance :
- No
- Mounting Type :
- Free Hanging (In-Line)
- Fastening Type :
- Latch Lock
- Factory Lead Time :
- 13 Weeks
- Filter Feature :
- No
- Width :
- 36.8mm
- Voltage - Rated DC :
- 24V
- Orientation :
- Straight
- Insulation Resistance :
- 200mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 125°C
- Total Number of Contacts :
- 6
- Contact Type :
- Female Socket
- Connector Type :
- PLUG
- Contact Termination :
- Crimp
- Length :
- 36.8046mm
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Series :
- SuperSeal
- Polarized :
- yes
- RoHS Status :
- RoHS Compliant
- REACH SVHC :
- Unknown
- Empty Shell :
- yes
- Wire Gauge (Max) :
- 22 AWG
- Mixed Contacts :
- No
- Number of Positions :
- 6
- Color :
- Black
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Resistance :
- 3mOhm
- Hybrid Connector :
- No
- Contact Plating :
- Tin
- Circuit Application :
- Signal
- ELV :
- Compliant
- Number of Rows :
- 1
- Current Rating :
- 14A
- Note :
- Contacts Not Included
- Housing Material :
- Polyamide
- Mount :
- Free Hanging
- Min Operating Temperature :
- -40°C
- Wire Gauge (Min) :
- 14 AWG
- Published :
- 1998
- Height :
- 32.2072mm
- Datasheets
- 282090-1
1 Rows Plug Bulk Black 6 Positions Free Hanging (In-Line) Female Socket Crimp Superseal Polyamide
282090-1 Description
The 282090-1 is a 6-position, 1-row, black housing manufactured of PA-GF for female terminals. Wire to board and wire to wire connections are made using the SUPERSEAL 1.5-series connector.
282090-1 Features
-
Polarized
-
24V Operating voltage
-
-40 to +125°C Temperature range
282090-1 Applications
-
Automotive
