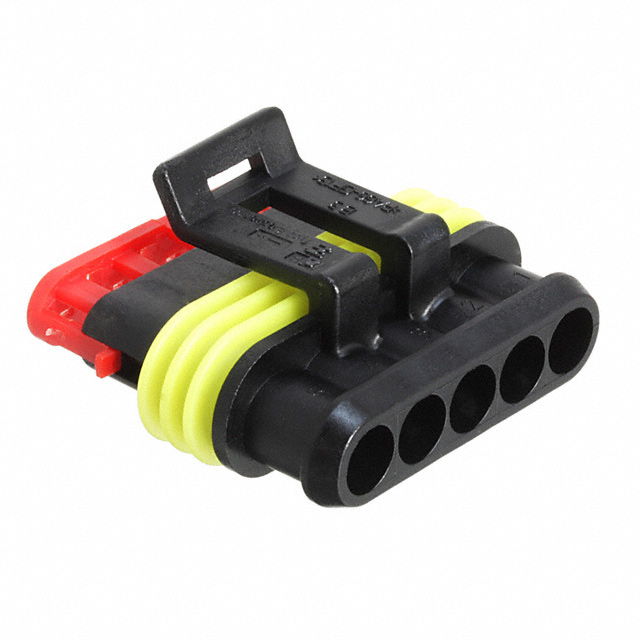

282089-1
Or copy the link below:
- Mfr.Part #
- 282089-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 5POS 6.00MM
- Stock
- 2,178
- In Stock ：
- 2,178
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Lead Free :
- Not Applicable
- Hybrid Connector :
- No
- Material :
- Polyamide
- DIN Conformance :
- No
- Total Number of Contacts :
- 5
- Insulation Resistance :
- 200mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- Pitch :
- 0.236 6.00mm
- Circuit Application :
- Signal
- Polarized :
- yes
- Pbfree Code :
- yes
- Gender :
- FEMALE
- Max Operating Temperature :
- 125°C
- Number of Positions :
- 5
- MIL Conformance :
- No
- Polarization Key :
- POLARIZED HOUSING
- Mixed Contacts :
- No
- Current Rating :
- 14A
- Published :
- 1998
- Ratings :
- IP67
- Packaging :
- Bulk
- Height :
- 32.2072mm
- Wire Gauge (Min) :
- 14 AWG
- Wire Gauge (Max) :
- 22 AWG
- Contact Design :
- PREASSEM CONN
- Fastening Type :
- Latch Lock
- Width :
- 9.3mm
- Color :
- Black
- Contact Plating :
- Tin
- Min Operating Temperature :
- -40°C
- Filter Feature :
- No
- Connector Type :
- PLUG
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Mating Tab Width :
- 1.4986mm
- ELV :
- Compliant
- Empty Shell :
- No
- Contact Termination :
- Crimp
- Voltage - Rated DC :
- 24V
- REACH SVHC :
- No SVHC
- Number of Rows :
- 1
- IEC Conformance :
- No
- Mount :
- Free Hanging
- Note :
- Contacts Not Included
- Contact Resistance :
- 3mOhm
- Reliability :
- COMMERCIAL
- Series :
- SuperSeal
- RoHS Status :
- RoHS Compliant
- Body Breadth :
- 0.366 inch
- Orientation :
- Straight
- Length :
- 40.9mm
- Contact Type :
- Female Socket
- Factory Lead Time :
- 15 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Datasheets
- 282089-1
1 Rows Plug Bulk Black 5 Positions Free Hanging (In-Line) Female Socket Crimp Superseal
282089-1 Overview
The packaging contains Plug.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number Superseal belongs to the Superseal Series.There is a Free Hanging mount on the part.
282089-1 Features
Superseal series
282089-1 Applications
There are a lot of TE Connectivity AMP Connectors
282089-1 Rectangular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
