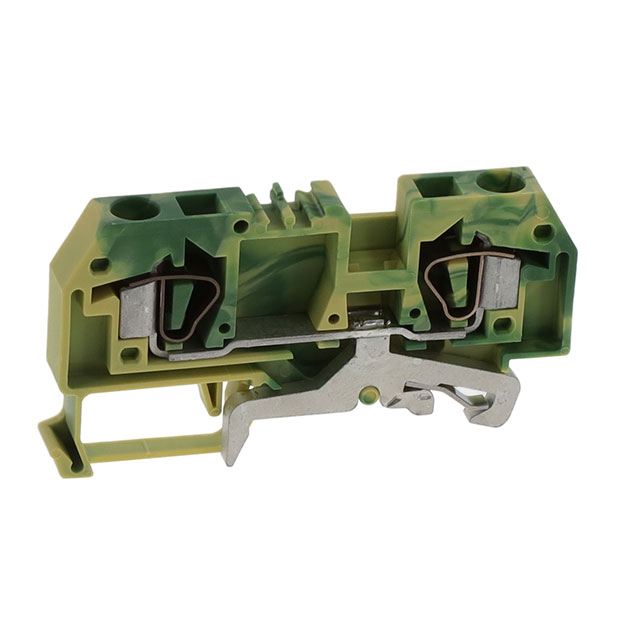

282-907

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Cross section (inflexible) (max.) :

6mm²

Flammability Rating :

UL94 V-0

Number of Contact Rows :

2

Configuration :

Terre

Depth :

32.5

Fuse Type :

-

Stripping length (max.) :

13mm

Number of Positions :

2

Inflammability class of insulation material according to with UL94 :

V0

Voltage - UL :

-

Pins per row :

2

Base Product Number :

282

Contact Pitch (mm) :

Not Required(mm)

Nominal current - rounded value :

41A

Mounting Type :

DIN Rail

Type :

Standard Block

Nominal current :

41A

No. of rows :

1

Min. stripping length :

12mm

Product Height (mm) :

32.5(mm)

Material Flammability Rating :

-

Manufacturer part # :

282-907

Disconnect Type :

-

Height :

32.50mm

Housing Color :

Green/yellow

AWG max. :

10

Product Length (mm) :

74.5(mm)

AWG (min.) :

24

Color :

Green, Yellow

Series :

794

Lead Free :

Lead Free

RoHS :

yes

Product Status :

Active

Package :

Bulk

Cross section (flexible) (min.) :

0.20mm²

Gender :

F

Rad Hardened :

No

Number of Rows :

1

Note :

n/a

Connection :

Pull spring

Stripping Length :

12mm ~ 13mm

Connectable conductor cross section multi-wired :

0.2 - 6

Number of Levels :

Single

Width :

8mm

Cross section (flexible) (max.) :

6mm²

Dim :

(W x H) 8 mm x 32.50 mm

Content :

50pc(s)

Features :

-

Number of Pins :

2

Industrial packaging :

yes

Terminal - Width :

8.0mm

Product Depth (mm) :

8(mm)

Length :

74.5

Number of Circuits :

1

Connectable conductor cross section solid-core :

0.2 - 6

Approvals :

UR

Wire Gauge :

10-24(AWG)

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Housing Material :

Polyamide 6/6

Mounting Style :

T DIN RAIL

Termination Method :

Clamp

Wire Gauge or Range - mm² :

0.2-6mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 6

Wire Gauge or Range - AWG :

10-24 AWG

Voltage - IEC :

-

Current Rating (Max) :

41(A)

Cross section (inflexible) (min.) :

0.20mm²

Manufacturer :

Wago

Number of Contacts :

2(POS)

Current Rating :

41 A

Packaging :

Box

Clamp width :

8mm

Termination Style :

Push In, Spring
