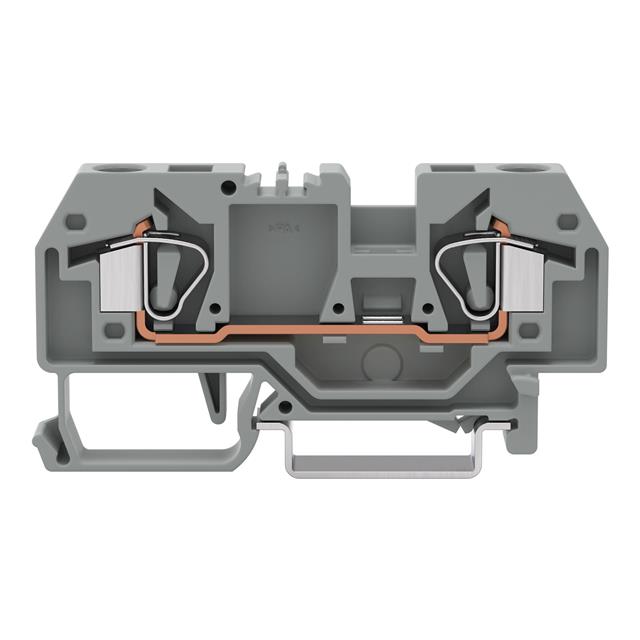

282-902

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Rows :

2

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Cross section (inflexible) (max.) :

6mm²

Stripping Length :

12mm ~ 13mm

Nominal voltage :

800V

Cross section (inflexible) (min.) :

0.20mm²

Approvals :

CSA, UR

Current - IEC :

41 A

Cross section (flexible) (max.) :

6mm²

HTS :

8536.90.40.00

Number of Positions :

2

Voltage - UL :

-

Manufacturer part # :

282-902

Product Status :

Active

Manufacturer :

Wago

Dim :

(W x H) 8 mm x 32.50 mm

Type :

Feed-Through Terminal Block

AWG max. :

10

Package :

Box

Maximum Current Rating (A) :

41

Maximum Voltage Rating :

800V

Mounting Type :

DIN Rail

Pins per row :

2

Mounting :

DIN Rail

Series :

794

Material Flammability Rating :

UL94 V-0

Features :

-

Housing Color :

Orange

Wire Gauge or Range - mm² :

0.2-6mm²

Nominal current - rounded value :

41A

Automotive :

No

Fuse Type :

-

ECCN (US) :

EAR99

Voltage - IEC :

800V

Width :

8mm

PPAP :

No

Cross section (flexible) (min.) :

0.20mm²

Wire Gauge or Range - AWG :

10-24 AWG

Industrial packaging :

yes

Min. stripping length :

12mm

RoHS :

yes

Termination Style :

Push In, Spring

Note :

n/a

Number of Circuits :

1

Clamp width :

8mm

Termination Method :

Spring Clamp

AWG (min.) :

24

Connection :

Pull spring

Contamination level :

3

EU RoHS :

Compliant

Stripping length (max.) :

13mm

Height :

32.50mm

Content :

50pc(s)

Disconnect Type :

-

Terminal - Width :

8.0mm

Minimum Operating Temperature (°C) :

-60

No. of rows :

1

Number of Contacts :

2

Number of Levels :

1

Nominal current :

41A

Maximum Operating Temperature (°C) :

105

Color :

Orange
