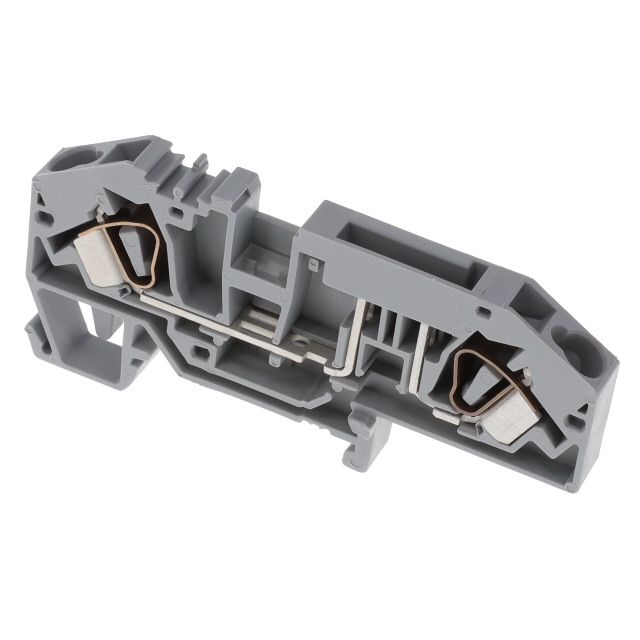

282-696

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Manufacturer part # :

282-696

Voltage - UL :

-

Number of Positions :

2

Rated Current :

30A

Number of Contact Rows :

1

Number of Circuits :

1

Features :

-

Termination Style :

Push In, Spring

Mounting Style :

T DIN RAIL

RoHS :

yes

Current - IEC :

30 A

Terminal - Width :

8.0mm

Current Rating (Max) :

25(A)

Content :

1pc(s)

Operating Voltage (Max) :

400V

Cable cross section :

6mm²

Package :

Bulk

Housing Color :

Gray

Number of Contacts :

2(POS)

Product Length (mm) :

8(mm)

Connection :

-

Packaging :

Box

Product Height (mm) :

33.5(mm)

Wire Gauge :

10-24(AWG)

Fuse Type :

-

Mounting Type :

DIN Rail

Color :

Gray

Nominal voltage (details) :

24V

Termination Method :

Clamp

Disconnect Type :

Fuse

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

-

Weight :

0.02

Voltage Rating :

400 V

Series :

793

Base Product Number :

282

Product Status :

Active

Number of Levels :

1

Approvals :

CSA, UL

Manufacturer :

Wago

Voltage - IEC :

400V

Current Rating :

30A

Nominal current :

25A

Nominal voltage :

24V

Nominal current (details) :

25A

Type :

Fuse Terminal

Nominal current - rounded value :

25A

Stripping Length :

12mm ~ 13mm

Wire Gauge or Range - AWG :

10-24 AWG

Rated Voltage :

800V

Rad Hardened :

No

Wire Gauge or Range - mm² :

0.2-6mm²

Note :

n/a

Product Depth (mm) :

85(mm)
