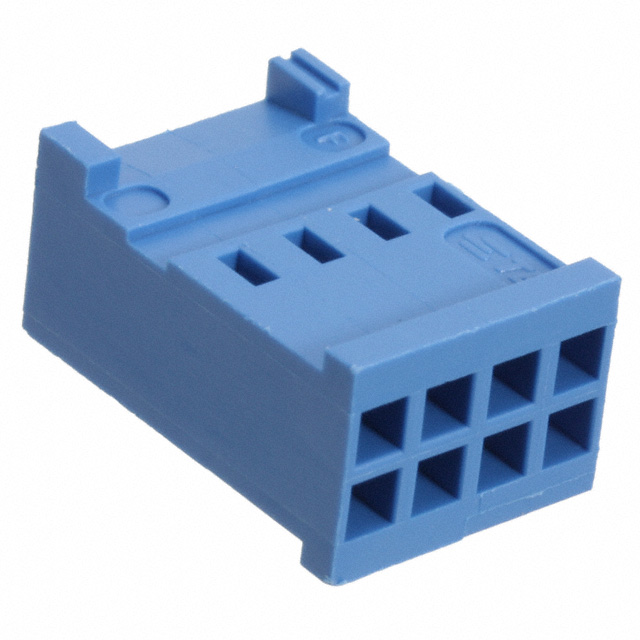

281839-4
Or copy the link below:
- Mfr.Part #
- 281839-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 8POS 2.54MM
- Stock
- 8,696
- In Stock ：
- 8,696
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Row Spacing :
- 0.100 (2.54mm)
- Lead Free :
- Not Applicable
- DIN Conformance :
- No
- Contact Material :
- Bronze
- RoHS Status :
- RoHS Compliant
- Rated Current (Signal) :
- 3A
- Housing Material :
- PBT
- Pbfree Code :
- yes
- Operating Temperature (Min) :
- -55°C
- Fastening Type :
- Detent Lock
- Width :
- 7.62mm
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Flammability Rating :
- UL94 V-0
- Color :
- Blue
- Lead Pitch :
- 2.54mm
- Filter Feature :
- No
- Mounting Type :
- Free Hanging (In-Line)
- Contact Termination :
- Crimp
- Published :
- 2008
- Current Rating :
- 3A
- ELV :
- Compliant
- Number of Rows :
- 2
- Number of Positions :
- 8
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire/Cable Gauge :
- 24 AWG
- Mating Retention :
- Without
- Dielectric Withstanding Voltage :
- 1400VAC V
- Mount :
- Cable, Free Hanging
- Termination :
- IDC
- Additional Feature :
- AMPMODU
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Total Number of Contacts :
- 4
- Contact Finish - Mating :
- NOT SPECIFIED
- IEC Conformance :
- No
- Series :
- HE13/HE14
- Factory Lead Time :
- 20 Weeks
- Length :
- 10.16mm
- ECCN Code :
- EAR99
- Contact Gender :
- FEMALE
- Packaging :
- Bulk
- Pitch :
- 0.100 2.54mm
- Option :
- GENERAL PURPOSE
- REACH SVHC :
- Unknown
- UL Flammability Code :
- 94V-0
- Reference Standard :
- UL, CSA
- Height :
- 15.0114mm
- Contact Current Rating :
- 3A
- Insulation Resistance :
- 1GOhm
- Note :
- Contacts Not Included
- Reliability :
- COMMERCIAL
- Orientation :
- Straight
- Durability :
- 400 Cycles
- Depth :
- 15mm
- Contact Type :
- Female Socket
- Connector Type :
- Receptacle
- Contact Resistance :
- 30mOhm
- Datasheets
- 281839-4
2 Rows Receptacle Bulk Blue 8 Positions Free Hanging (In-Line) Female Socket Crimp HE13/HE14 PBT
281839-4 Overview
This product is packaged in a Receptacle box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the HE13/HE14 Series.Furthermore, there are other features such as AMPMODU, to name a few.By Cable, Free Hanging, the part is mounted.
281839-4 Features
HE13/HE14 series
281839-4 Applications
There are a lot of TE Connectivity AMP Connectors
281839-4 Rectangular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
