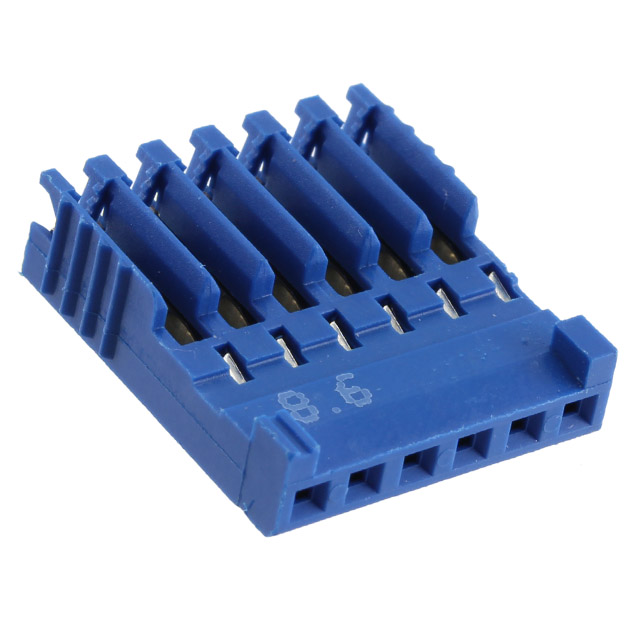

281786-6
Or copy the link below:
- Mfr.Part #
- 281786-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 6POS IDC 26-28AWG TIN
- Stock
- 60
- In Stock ：
- 60
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Mounting Type :
- Free Hanging (In-Line)
- Contact Type :
- Female Socket
- Wire Type :
- Discrete
- Contact Resistance :
- 30mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire/Cable Gauge :
- 26 AWG
- Insulation Diameter :
- 990.6 µm
- Row Spacing :
- 2.54 mm
- Contact Finish :
- Tin
- Wire Gauge (Min) :
- 28 AWG
- MIL Conformance :
- No
- Contact Current Rating :
- 3A
- Lead Pitch :
- 2.54mm
- UL Flammability Code :
- 94V-0
- IEC Conformance :
- No
- Length :
- 16.04mm
- Gender :
- Receptacle
- Depth :
- 17.8mm
- Color :
- Blue
- Wire Gauge :
- 26-28 AWG
- Option :
- GENERAL PURPOSE
- Wire Gauge (Max) :
- 26 AWG
- Width :
- 5.1mm
- DIN Conformance :
- No
- Connector Type :
- PLUG
- Number of Poles :
- 6
- Height :
- 129.54mm
- Housing Material :
- PBT
- Number of Rows :
- 1
- Mount :
- Cable, Free Hanging
- Material :
- Glass, Polyester
- Total Number of Contacts :
- 6
- Min Operating Temperature :
- -40°C
- Voltage - Rated DC :
- 500V
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Max Operating Temperature :
- 105°C
- Working Voltage :
- 500V
- Insulation Resistance :
- 1GOhm
- Pbfree Code :
- yes
- Current Rating :
- 3A
- Cable Termination :
- IDC
- Mating Retention :
- Without
- REACH SVHC :
- Unknown
- ELV :
- Compliant
- Factory Lead Time :
- 14 Weeks
- Flammability Rating :
- UL94 V-0
- Orientation :
- Straight
- Fastening Type :
- Detent Lock
- Packaging :
- Bulk
- Published :
- 2007
- Mixed Contacts :
- No
- Filter Feature :
- No
- Contact Material :
- Bronze
- Contact Gender :
- FEMALE
- Pitch :
- 0.100 2.54mm
- JESD-609 Code :
- e3
- RoHS Status :
- RoHS Compliant
- Series :
- HE13/HE14
- Datasheets
- 281786-6
281786-6 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
