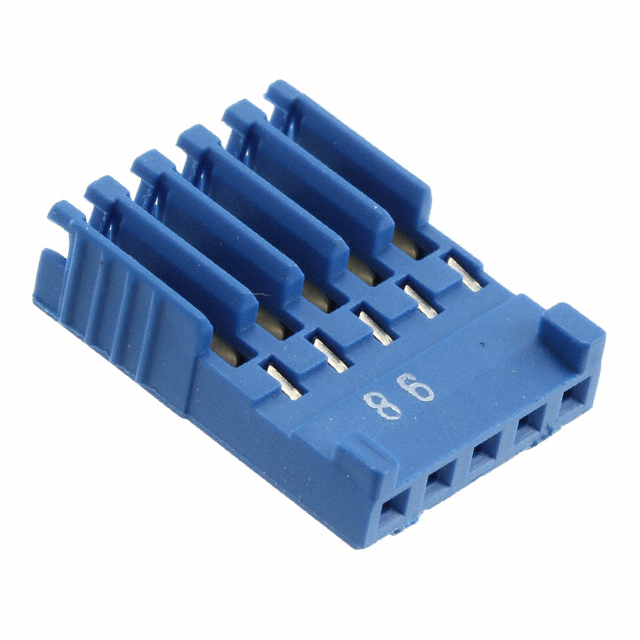

281786-5
Or copy the link below:
- Mfr.Part #
- 281786-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 5POS IDC 26-28AWG TIN
- Stock
- 1,496
- In Stock ：
- 1,496
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Lead Pitch :
- 2.54mm
- Contact Gender :
- FEMALE
- Pitch :
- 0.100 2.54mm
- Height :
- 129.54mm
- Contact Type :
- Female Socket
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Bronze
- Wire Gauge (Max) :
- 28 AWG
- RoHS Status :
- RoHS Compliant
- Width :
- 5.1mm
- Wire Gauge (Min) :
- 26 AWG
- Wire Type :
- Discrete
- Current Rating :
- 3A
- Radiation Hardening :
- No
- Mount :
- Cable, Free Hanging
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 3A
- Contact Finish :
- Tin
- REACH SVHC :
- Unknown
- ECCN Code :
- EAR99
- Factory Lead Time :
- 16 Weeks
- Wire/Cable Gauge :
- 26 AWG
- Housing Material :
- PBT
- Color :
- Blue
- Mounting Type :
- Free Hanging (In-Line)
- Fastening Type :
- Detent Lock
- Min Operating Temperature :
- -40°C
- Contact Resistance :
- 30mOhm
- Mating Retention :
- Without
- ELV :
- Compliant
- Insulation Diameter :
- 990.6 µm
- Length :
- 13.5mm
- Published :
- 2007
- Row Spacing :
- 2.54 mm
- Packaging :
- Bulk
- Connector Type :
- PLUG
- Orientation :
- Straight
- Material :
- Glass, Polyester
- Voltage - Rated DC :
- 500V
- Series :
- HE13/HE14
- Insulation Resistance :
- 1GOhm
- Cable Termination :
- IDC
- Working Voltage :
- 500V
- Depth :
- 17.8mm
- Wire Gauge :
- 26-28 AWG
- Max Operating Temperature :
- 105°C
- Gender :
- Receptacle
- Number of Poles :
- 5
- Number of Rows :
- 1
- Datasheets
- 281786-5
