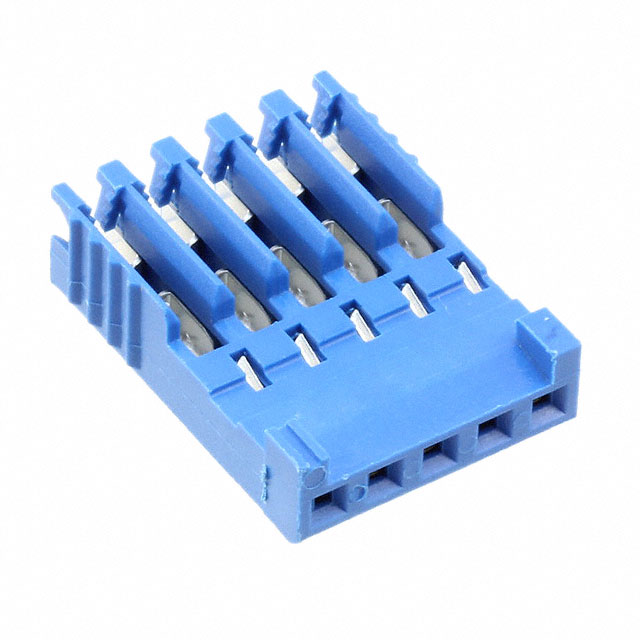

281784-5
Or copy the link below:
- Mfr.Part #
- 281784-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 5POS IDC 24-26AWG GOLD
- Stock
- 1,081
- In Stock ：
- 1,081
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Orientation :
- Straight
- Color :
- Blue
- Cable Termination :
- IDC
- Insulation Resistance :
- 5GOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2007
- Length :
- 13.5mm
- Radiation Hardening :
- No
- Factory Lead Time :
- 16 Weeks
- Contact Type :
- Female Socket
- Wire Gauge (Max) :
- 24 AWG
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Connector Type :
- PLUG
- Number of Rows :
- 1
- Row Spacing :
- 2.54 mm
- Current Rating :
- 3A
- Series :
- HE13/HE14
- Packaging :
- Bulk
- Height :
- 129.54mm
- Contact Current Rating :
- 3A
- Housing Material :
- PBT
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Bronze
- Flammability Rating :
- UL94 V-0
- Pitch :
- 0.100 2.54mm
- Contact Gender :
- FEMALE
- Min Operating Temperature :
- -55°C
- Mating Retention :
- Without
- Max Operating Temperature :
- 125°C
- Mount :
- Free Hanging
- RoHS Status :
- RoHS Compliant
- Insulation Diameter :
- 1.2 mm
- Number of Positions :
- 5
- Wire Gauge (Min) :
- 26 AWG
- Wire Type :
- Discrete
- Depth :
- 17.8mm
- Fastening Type :
- Detent Lock
- Wire Gauge :
- 24-26 AWG
- Contact Finish :
- Gold
- Datasheets
- 281784-5
281784-5 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
