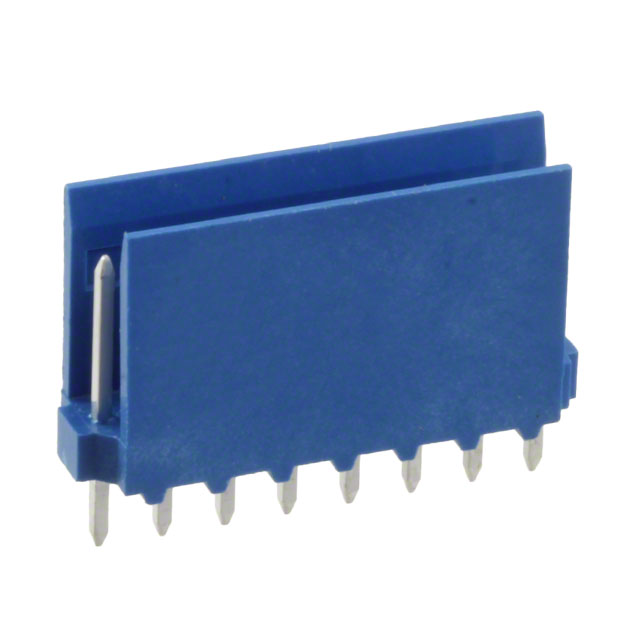

281695-8
Or copy the link below:
- Mfr.Part #
- 281695-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2.54MM
- Stock
- 5,917
- In Stock ：
- 5,917
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.449 11.40mm
- JESD-609 Code :
- e3
- Contact Finish - Mating :
- Tin
- DIN Conformance :
- No
- Voltage - Rated DC :
- 500V
- Style :
- Board to Cable/Wire
- IEC Conformance :
- No
- Contact Length - Post :
- 0.114 2.90mm
- Number of Positions :
- 8
- Published :
- 2005
- Operating Temperature :
- -40°C~100°C
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Phosphor Bronze
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Termination :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Resistance :
- 30mOhm
- RoHS Status :
- RoHS Compliant
- Lead Pitch :
- 2.54mm
- Row Spacing :
- 2.54 mm
- Factory Lead Time :
- 15 Weeks
- MIL Conformance :
- No
- Fastening Type :
- Friction Lock
- Overall Contact Length :
- 0.492 12.50mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Insulation Resistance :
- 1GOhm
- Filter Feature :
- No
- Current Rating :
- 3A
- Pitch - Mating :
- 0.100 2.54mm
- Shrouding :
- Shrouded - 2 Wall
- Packaging :
- Bulk
- Contact Length - Mating :
- 0.276 7.00mm
- Mixed Contacts :
- No
- Applications :
- GENERAL PURPOSE
- Series :
- HE13/HE14
- Mounting Type :
- Through Hole
- Orientation :
- Vertical
- Contact Shape :
- Square
- UL Flammability Code :
- 94V-0
- Insulation Material :
- Thermoplastic
- Housing Color :
- Blue
- Datasheets
- 281695-8
281695-8 Documents
HE13/HE14 Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Tin Thermoplastic 8-Position Board to Cable/Wire 0.449 11.40mm Height
281695-8 Overview
Header packaging is included.This device has a mounting type of Through Hole.We package the product with a Bulk case.The product is part of the HE13/HE14 Series.You can use it for General Purpose.This device runs at -40°C~100°C operating temperature.
281695-8 Features
HE13/HE14 series
281695-8 Applications
There are a lot of TE Connectivity AMP Connectors
281695-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
