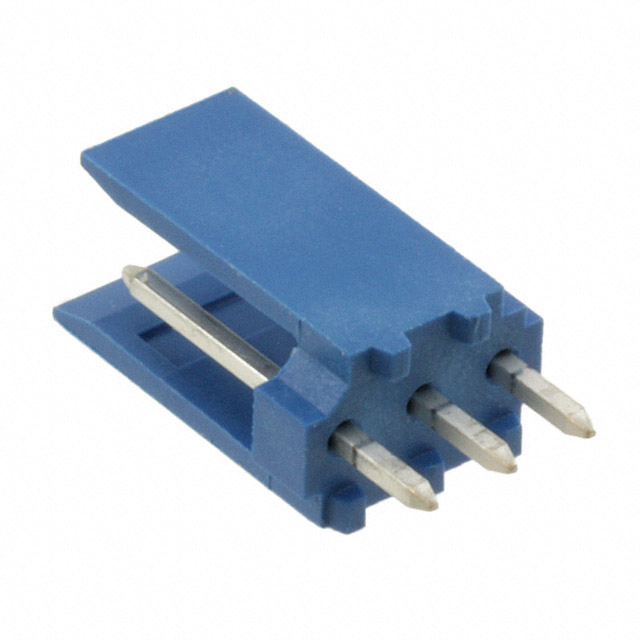

281695-3
Or copy the link below:
- Mfr.Part #
- 281695-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 250
- In Stock ：
- 250
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Lead Free :
- Lead Free
- Contact Resistance :
- 30mOhm
- Contact Type :
- Male Pin
- Orientation :
- Vertical
- Pbfree Code :
- yes
- Connector Type :
- Header
- UL Flammability Code :
- 94V-0
- Termination :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Number of Positions :
- 3
- Shrouding :
- Shrouded - 2 Wall
- Style :
- Board to Cable/Wire
- Packaging :
- Bulk
- Filter Feature :
- No
- MIL Conformance :
- No
- Voltage - Rated DC :
- 500V
- Contact Material :
- Phosphor Bronze
- Applications :
- GENERAL PURPOSE
- Factory Lead Time :
- 15 Weeks
- Insulation Material :
- Thermoplastic
- Fastening Type :
- Friction Lock
- Contact Length - Post :
- 0.114 2.90mm
- Operating Temperature :
- -40°C~100°C
- Number of Positions Loaded :
- All
- Row Spacing :
- 2.54 mm
- Published :
- 2005
- Additional Feature :
- AMPMODU
- Lead Pitch :
- 2.54mm
- Insulation Resistance :
- 1GOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Series :
- HE13/HE14
- IEC Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Height :
- 0.449 11.40mm
- Overall Contact Length :
- 0.492 12.50mm
- Contact Finish - Mating :
- Tin
- Mixed Contacts :
- No
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.276 7.00mm
- Housing Color :
- Blue
- Contact Shape :
- Square
- Current Rating :
- 3A
- Mounting Type :
- Through Hole
- Datasheets
- 281695-3
HE13/HE14 Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Tin Thermoplastic 3-Position Board to Cable/Wire 0.449 11.40mm Height
281695-3 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the HE13/HE14 Series of products.Additionally, there are other features, such as AMPMODU.It is possible for the device to be used for the application General Purpose.There is no operating temperature for the device.
281695-3 Features
HE13/HE14 series
281695-3 Applications
There are a lot of TE Connectivity AMP Connectors
281695-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
