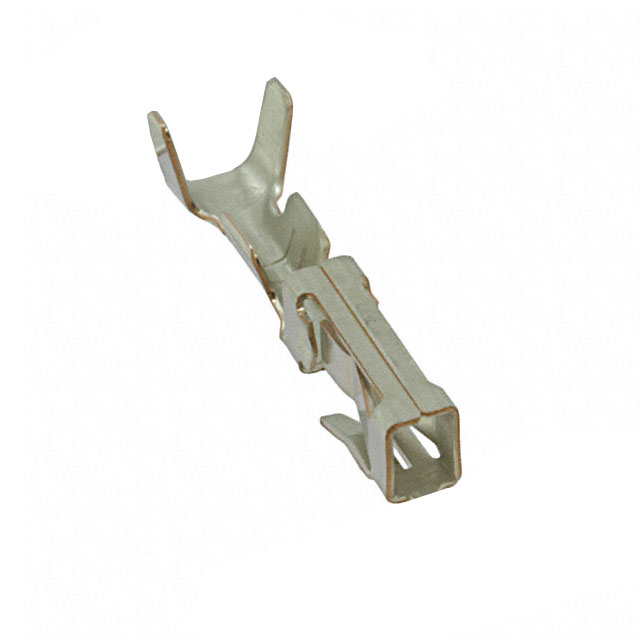

281423-1

Share

Or copy the link below:

Mfr.Part #
281423-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN SOCKET 17-20AWG CRIMP TIN
Stock
35,694
In Stock :
35,694

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Rectangular Connector Contacts
Contact Resistance :
12mOhm
Insulation Diameter :
2.8 mm
Connector Support Type :
CONNECTOR ACCESSORY
Depth :
2.2mm
IEC Conformance :
No
Assembly Item Name :
Contact
Pin or Socket :
Socket
Wire Gauge (Max) :
20 AWG
Min Operating Temperature :
-40°C
Contact Finish :
Tin
Cable Entry-Min :
0.086 inch
Orientation :
Straight
Packaging :
Tape and Reel (TR)
Lifecycle Status :
ACTIVE (Last Updated: 5 months ago)
Length :
12.65mm
RoHS Status :
RoHS Compliant
Height :
1.9mm
Wire Gauge (Min) :
17 AWG
Shielding :
Unshielded
PCB Mount Retention :
Without
Current Rating :
5A
Series :
AMPMODU Mod I
Factory Lead Time :
36 Weeks
Max Operating Temperature :
105°C
Make First / Break Last :
No
Plating Thickness :
800 nm
Wire Gauge :
17-20 AWG
Contact Material :
Bronze
ELV :
Compliant
REACH SVHC :
No SVHC
Contact Current Rating :
5A
Contact Termination :
Crimp
Contact Style :
SQ PIN-SKT
MIL Conformance :
No
Wire/Cable Gauge :
17 AWG
DIN Conformance :
No
Gender :
Receptacle
Published :
1999
Mount :
CABLE
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Cable Entry-Max :
0.11 inch
Contact Finish Thickness :
31.5μin 0.80μm
Datasheets
281423-1
Introducing Rectangular Connector Contacts TE Connectivity AMP Connectors 281423-1 from Chip IC,where excellence meets affordability. This product stands out with its 281423-1 pinout, 281423-1 datasheet PDF, 281423-1 amp .Beyond Rectangular Connector Contacts TE Connectivity AMP Connectors 281423-1 ,we also offer 4281F2428-99, SWT25X-URTC-S01-UU-UU, SHF-001T-0.8BS, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 281423-1


281423-1 datasheet pdf and Rectangular Connectors - Contacts product details from TE Connectivity AMP Connectors stock available at Xinshop
