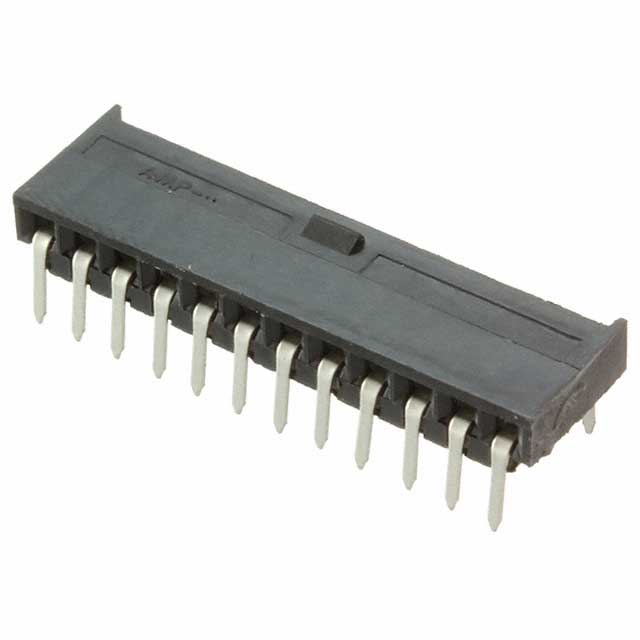

281336-1
Or copy the link below:
- Mfr.Part #
- 281336-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 12POS 0.1 TIN PCB R/A
- Stock
- 35
- In Stock ：
- 35
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Type :
- Female Socket
- Pbfree Code :
- yes
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Shape :
- Square
- Series :
- AMPMODU Mod II
- Terminal Pitch :
- 2.54mm
- Lead Length :
- 3.5mm
- Polarization Key :
- POLARIZED HOUSING
- Style :
- Board to Board
- Stackable :
- yes
- Operating Temperature :
- -65°C~105°C
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Contact Pattern :
- RECTANGULAR
- Length :
- 31mm
- Contact Finish Thickness - Post :
- 30.0μin 0.76μm
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Polyester, Glass Filled
- DIN Conformance :
- No
- Number of Rows :
- 1
- Orientation :
- RIGHT ANGLE
- Width :
- 8.7mm
- Housing Color :
- Black
- PCB Mount Retention :
- Without
- Length - Tail :
- 3.5mm
- Contact Current Rating :
- 3A
- Insulation Height :
- 0.157 4.00mm
- ELV :
- Compliant
- Fastening Type :
- Friction Lock
- RoHS Status :
- RoHS Compliant
- PCB Contact Row Spacing :
- 7.62 mm
- Contact Material :
- Phosphor Bronze
- Rated Current (Signal) :
- 3A
- MIL Conformance :
- No
- Depth :
- 8.71mm
- IEC Conformance :
- No
- Number of Positions Loaded :
- All
- ECCN Code :
- EAR99
- Number of Conductors :
- ONE
- Reference Standard :
- UL
- Termination :
- Solder
- PCB Mounting Orientation :
- RIGHT ANGLE
- Option :
- GENERAL PURPOSE
- Pitch - Mating :
- 0.100 2.54mm
- Plating Thickness :
- 760 nm
- Number Of PCB Rows :
- 2
- Mount :
- Through Hole
- Published :
- 2008
- Number of Positions :
- 12
- Housing Material :
- Thermoplastic
- HTS Code :
- 8536.69.40.40
- High Temperature Compatible :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Withdrawl Force-Min :
- .2085 N
- Connector Type :
- Receptacle
- Contact Length - Post :
- 0.138 3.50mm
- Material Flammability Rating :
- UL94 V-0
- JESD-609 Code :
- e3
- Factory Lead Time :
- 37 Weeks
- Height :
- 4.0386mm
- Flammability Rating :
- UL94 V-0
- Gender :
- FEMALE
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- No
- Contact Finish - Mating :
- Tin
- UL Flammability Code :
- 94V-0
- Packaging :
- Bulk
- Datasheets
- 281336-1
281336-1 Documents
1 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Bulk Tin Polyester, Glass Filled 12 Positions Female Socket
281336-1 Overview
A Receptacle package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the AMPMODU Mod II Series of products.Through Hole mounts the part.There is no operating temperature for the device.
281336-1 Features
AMPMODU Mod II series
281336-1 Applications
There are a lot of TE Connectivity AMP Connectors
281336-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
