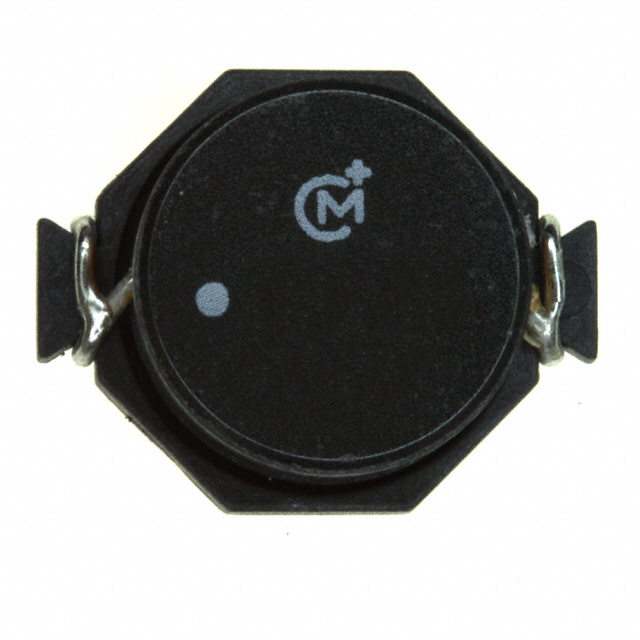

28103C

Manufacturer :

Murata Power Solutions

Product Category :

Fixed Inductors

Depth :

15.2mm

JESD-609 Code :

e3

Q Factor :

31.1

Height Seated (Max) :

0.299 7.60mm

Shielding :

No

Inductor Application :

POWER INDUCTOR

ECCN Code :

EAR99

Lead Free :

Lead Free

Terminal Finish :

Tin (Sn)

Type :

Wirewound

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Q @ Freq :

31.1 @ 1MHz

Mounting Type :

Surface Mount

Number of Terminations :

2

Tolerance :

10%

Shape/Size Description :

RECTANGULAR PACKAGE

Packaging :

Tape and Reel (TR)

Frequency - Self Resonant :

22.5MHz

RoHS Status :

RoHS Compliant

Terminal Shape :

ONE SURFACE

DC Resistance (DCR) :

18mOhm Max

Operating Temperature :

-40°C~125°C

Package / Case :

Nonstandard

HTS Code :

8504.50.80.00

Termination :

SMD/SMT

Series :

2800

Current Rating :

5.9A

Height :

7.6mm

Max DC Current :

5.9A

Number of Functions :

1

Test Frequency :

10kHz

Size / Dimension :

0.728Lx0.598W 18.50mmx15.20mm

Number of Pins :

2

Pbfree Code :

yes

Mount :

Surface Mount

Terminal Placement :

DUAL ENDED

Inductance :

10μH
