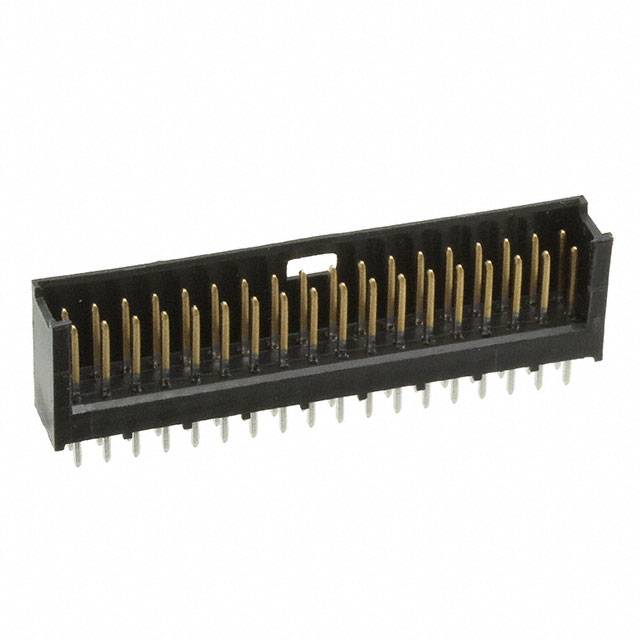

281019-2
Or copy the link below:
- Mfr.Part #
- 281019-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 2.54MM
- Stock
- 12,382
- In Stock ：
- 12,382
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Contacts :
- 36
- Contact Length - Mating :
- 0.260 6.60mm
- Overall Contact Length :
- 0.563 14.30mm
- Number of Positions :
- 18
- Contact Type :
- Male Pin
- Current Rating (Amps) :
- 3A
- Contact Length - Post :
- 0.138 3.50mm
- Number of Rows :
- 2
- Depth :
- 7mm
- Factory Lead Time :
- 33 Weeks
- Orientation :
- Vertical
- Connector Type :
- Header
- Contact Plating :
- Gold, Tin
- Mating Contact Pitch :
- .100 inch
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Color :
- Black
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Number Of PCB Rows :
- 2
- Insulation Material :
- Thermoplastic
- Contact Gender :
- Male
- Shrouding :
- Shrouded - 3 Wall
- Approval Agency :
- CSA
- Series :
- AMPMODU Mod II
- Pbfree Code :
- yes
- Pitch - Mating :
- 0.100 2.54mm
- Termination :
- Solder
- Mixed Contacts :
- No
- Published :
- 2009
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Option :
- GENERAL PURPOSE
- Contact Material :
- Brass
- Voltage - Rated :
- 40V
- Operating Temperature :
- -40°C~80°C
- Keyed :
- No
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Post Length :
- 6.604mm
- Packaging :
- Bulk
- Lead Length :
- 3.5052mm
- Contact Finish - Mating :
- Gold
- Number of Conductors :
- ONE
- Insulation Height :
- 0.496 12.60mm
- Style :
- Board to Board or Cable
- Shrouded End Dimension :
- 1.65 mm
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Filter Feature :
- No
- Plating Thickness :
- 2.5μm
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Length :
- 48.3mm
- Number of Positions Loaded :
- All
- Flammability Rating :
- UL94 V-0
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Fastening Type :
- Detent Lock
- Material Flammability Rating :
- UL94 V-0
- UL Flammability Code :
- 94V-0
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Datasheets
- 281019-2
AMPMODU Mod II Series 2-Row Header Solder Brass Bulk Through Hole Gold Thermoplastic 18-Position Board to Board or Cable 0.496 12.60mm Height
281019-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the AMPMODU Mod II Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -40°C~80°C Operating Temperature.
281019-2 Features
AMPMODU Mod II series
281019-2 Applications
There are a lot of TE Connectivity AMP Connectors
281019-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
