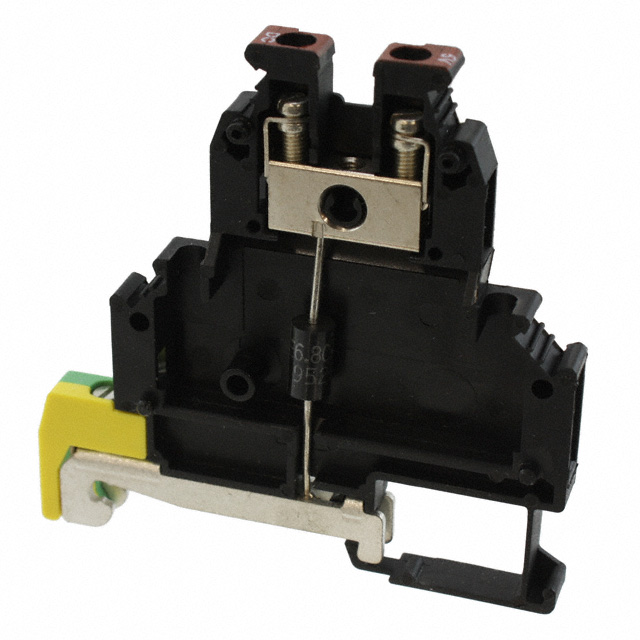

2809584

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Max Operating Temperature :

85°C

Number of Rows :

2

Number of Levels :

2; Connected and Grounded

Wire Gauge (Min) :

12 AWG

Feature :

Diode

Current Rating :

32A

Published :

2011

Voltage - Rated AC :

5V

Mount :

Cable, DIN Rail

Height :

69.5mm

Wire Gauge or Range - mm² :

0.2-4mm2

Stripping Length :

8mm

Flammability Rating :

UL94 V-2

Type :

Feed Through

Wire Gauge or Range - AWG :

12-24 AWG

Max Voltage Rating (AC) :

5V

Series :

TERMITRAB SLKK

Terminal Width :

6.2mm

RoHS Status :

RoHS Compliant

Weight :

19.239999g

Min Operating Temperature :

-40°C

Material - Insulation :

Polyamide (PA), Nylon

Material Flammability Rating :

UL94 V-2

Depth :

6.2mm

Length :

66.5mm

Max Current Rating :

32A

Number of Contacts :

2

Color :

Black

Termination Style :

Screw

Number of Positions :

3

Wire Gauge (Max) :

24 AWG

Factory Lead Time :

6 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Width :

6.2mm

Termination :

Screw

Number of Circuits :

1

Housing Material :

Polyamide
