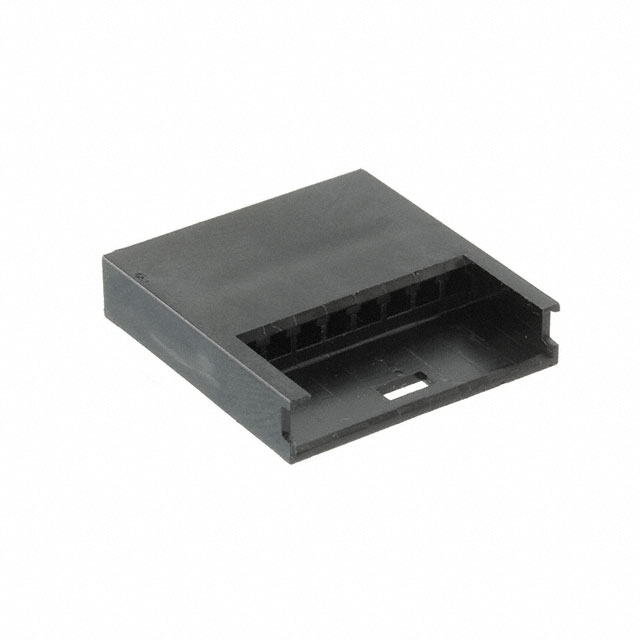

280631

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Flammability Rating :

UL94 V-1

Max Operating Temperature :

105°C

Note :

Contacts Not Included

Polarization Key :

POLARIZED HOUSING

Gender :

Receptacle

Mount :

Free Hanging

Length :

7.1mm

Connector Type :

PLUG

Current Rating :

3A

Row Spacing :

2.54 mm

Pbfree Code :

yes

Total Number of Contacts :

8

Filter Feature :

No

REACH SVHC :

Unknown

Contact Type :

Male Pin

Packaging :

Bulk

Height :

3.048mm

Contact Termination :

Crimp

Published :

1998

Option :

GENERAL PURPOSE

Wire Gauge (Min) :

22 AWG

Orientation :

Straight

Lead Pitch :

2.54mm

Depth :

23.8mm

Number of Positions :

8

Color :

Black

Number of Rows :

1

Number of Conductors :

ONE

RoHS Status :

RoHS Compliant

Pitch :

0.100 2.54mm

Factory Lead Time :

39 Weeks

Mounting Type :

Free Hanging (In-Line)

Series :

AMPMODU Mod II

Mating Retention :

With

Reference Standard :

UL

Contact Gender :

Male

Housing Material :

Thermoplastic

Width :

5mm

Min Operating Temperature :

-65°C

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Max) :

30 AWG
