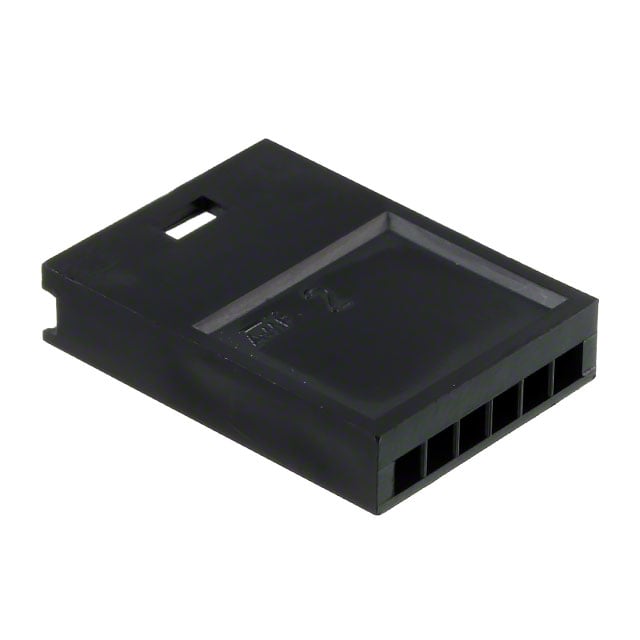

280630

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

ELV :

Compliant

RoHS Status :

RoHS Compliant

Lead Pitch :

2.54mm

Series :

AMPMODU Mod II

Height :

3.048mm

Factory Lead Time :

38 Weeks

Wire Gauge (Min) :

22 AWG

Max Operating Temperature :

105°C

Total Number of Contacts :

6

Lead Free :

Lead Free

Contact Gender :

Male

Length :

7.1mm

Mating Retention :

With

Housing Material :

Thermoplastic

Radiation Hardening :

No

Packaging :

Bulk

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Connector Type :

PLUG

DIN Conformance :

No

Contact Termination :

Crimp

Current Rating :

3A

Row Spacing :

2.54 mm

Number of Positions :

6

Depth :

23.8mm

Flammability Rating :

UL94 V-1

Width :

5mm

Pitch :

0.100 2.54mm

Mount :

Free Hanging, PCB

Wire Gauge (Max) :

30 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

1998

Color :

Black

Note :

Contacts Not Included

Contact Plating :

Bronze, Gold, Tin

Material :

PPO, Thermoplastic

IEC Conformance :

No

Min Operating Temperature :

-40°C

Wire/Cable Gauge :

30 AWG

MIL Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Pbfree Code :

yes

Orientation :

Straight

Filter Feature :

No

Number of Rows :

1

Gender :

Receptacle

Contact Type :

Male Pin
