280610-2

Share

Or copy the link below:

Mfr.Part #
280610-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
SIL
Datasheet
Download
Description
CONN HEADER VERT 4POS 3.96MM
Stock
358
In Stock :
358

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Number of Rows :
1
Number of Positions :
4
Option :
GENERAL PURPOSE
Contact Length - Mating :
0.394 10.00mm
Pitch - Mating :
0.156 3.96mm
Contact Plating :
Gold, Tin
Rated Current (Signal) :
5A
Package / Case :
SIL
Insulation Material :
Polycarbonate, Glass Filled
Lifecycle Status :
ACTIVE (Last Updated: 6 months ago)
Insulation Resistance :
5GOhm
ELV :
Compliant
Max Operating Temperature :
105°C
Overall Contact Length :
0.642 16.30mm
Contact Resistance :
12mOhm
Min Operating Temperature :
-65°C
Depth :
8.8mm
Mounting Type :
Through Hole
DIN Conformance :
No
Fastening Type :
Detent Lock
Mating Post Length :
10mm
Shrouding :
Shrouded - 2 Wall
Number Of PCB Rows :
1
Mixed Contacts :
No
Lead Free :
Lead Free
IEC Conformance :
No
Keyed :
No
Material Flammability Rating :
UL94 V-0
Contact Material :
Brass
Contact Finish - Post :
Tin
Published :
2001
Filter Feature :
No
Contact Length - Post :
0.130 3.30mm
Style :
Board to Board or Cable
Factory Lead Time :
33 Weeks
Number of Positions Loaded :
All
Orientation :
Vertical
Lead Pitch :
3.96mm
Connector Type :
Header
Series :
AMPMODU Mod I
Housing Material :
Polycarbonate
ECCN Code :
EAR99
REACH SVHC :
No SVHC
Insulation Color :
Green
Termination :
Solder
Flammability Rating :
UL94 V-0
Contact Type :
Male Pin
Pbfree Code :
yes
Shrouded End Dimension :
1.143 mm
Reliability :
COMMERCIAL
Contact Finish - Mating :
Gold
Contact Shape :
RECTANGULAR
MIL Conformance :
No
RoHS Status :
RoHS Compliant
Mount :
Through Hole
JESD-609 Code :
e3
Length :
14.2mm
Approval Agency :
CSA
Lead Length :
3.3mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packaging :
Bulk
Body Breadth :
0.35 inch
Contact Gender :
Male
Insulation Height :
0.913 23.20mm
Contact Finish Thickness - Mating :
15.0μin 0.38μm
Number of Conductors :
ONE
Datasheets
280610-2
Introducing Headers, Male Pins TE Connectivity AMP Connectors 280610-2 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:SIL, Mounting Type:Through Hole, 280610-2 pinout, 280610-2 datasheet PDF, 280610-2 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 280610-2 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

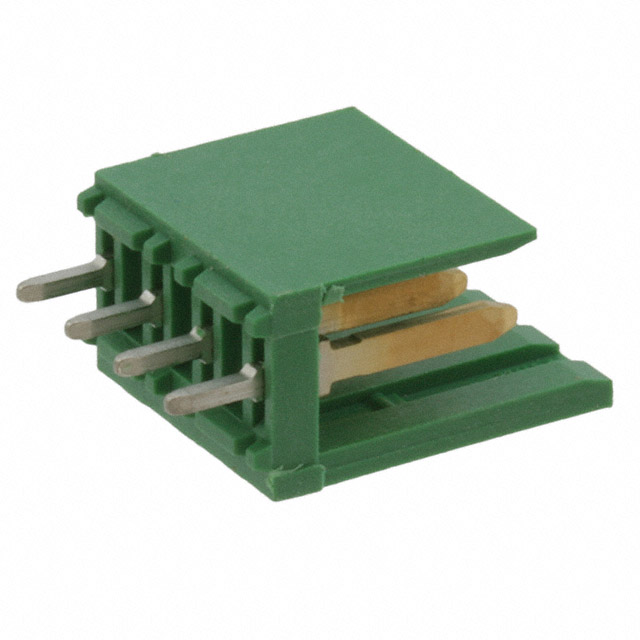

TE Connectivity AMP Connectors 280610-2


AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole Gold Polycarbonate, Glass Filled 4-Position Board to Board or Cable 0.913 23.20mm Height

280610-2 Overview


This product is packaged in a Header cartonThis device's mounting type is Through Hole.It's packaged in a Bulk case.AMPMODU Mod I Series product.The best time to use this device is when the temperature is below 105°C.It has to be at least -65°C degrees to work.Packaged with the SIL, there is a device enclosed.Through Hole is mounting the part.

280610-2 Features


AMPMODU Mod I series


280610-2 Applications


There are a lot of TE Connectivity AMP Connectors
280610-2 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
