280609-1

Share

Or copy the link below:

Mfr.Part #
280609-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
SIL
Datasheet
Download
Description
CONN HEADER VERT 2POS 3.96MM
Stock
3,453
In Stock :
3,453

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Lead Pitch :
3.96mm
Shrouded End Dimension :
1.143 mm
ELV :
Compliant
Number Of PCB Rows :
1
Body Breadth :
0.35 inch
MIL Conformance :
No
Connector Type :
Header
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Style :
Board to Board or Cable
Fastening Type :
Detent Lock
ECCN Code :
EAR99
Number of Conductors :
ONE
Option :
GENERAL PURPOSE
IEC Conformance :
No
Material :
Polycarbonate
RoHS Status :
RoHS Compliant
Insulation Resistance :
5GOhm
Reliability :
COMMERCIAL
Overall Contact Length :
0.642 16.30mm
Contact Type :
Male Pin
Published :
2001
Min Operating Temperature :
-65°C
Factory Lead Time :
33 Weeks
Number of Rows :
1
Orientation :
Vertical
Pbfree Code :
yes
Lifecycle Status :
ACTIVE (Last Updated: 6 months ago)
Contact Shape :
RECTANGULAR
Series :
AMPMODU Mod I
Length :
6.2mm
Contact Length - Post :
0.130 3.30mm
Mating Post Length :
10mm
Keyed :
No
Lead Free :
Lead Free
HTS Code :
8536.69.40.40
Contact Material :
Brass
Number of Positions :
2
Filter Feature :
No
DIN Conformance :
No
Approval Agency :
CSA
Flammability Rating :
UL94 V-0
Depth :
8.8mm
Mounting Type :
Through Hole
Package / Case :
SIL
Pitch - Mating :
0.156 3.96mm
Number of Positions Loaded :
All
Rated Current (Signal) :
5A
Termination :
Solder
Current Rating :
5A
REACH SVHC :
Unknown
Mount :
Through Hole
Contact Finish - Mating :
Tin
Housing Color :
Green
Packaging :
Bulk
Insulation Height :
0.913 23.20mm
Contact Length - Mating :
0.394 10.00mm
Lead Length :
3.3mm
Material Flammability Rating :
UL94 V-0
Contact Resistance :
12mOhm
Max Operating Temperature :
105°C
Shrouding :
Shrouded - 2 Wall
Insulation Material :
Polycarbonate, Glass Filled
Contact Gender :
Male
Mixed Contacts :
No
Datasheets
280609-1
Introducing Headers, Male Pins TE Connectivity AMP Connectors 280609-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Package / Case:SIL, 280609-1 pinout, 280609-1 datasheet PDF, 280609-1 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 280609-1 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

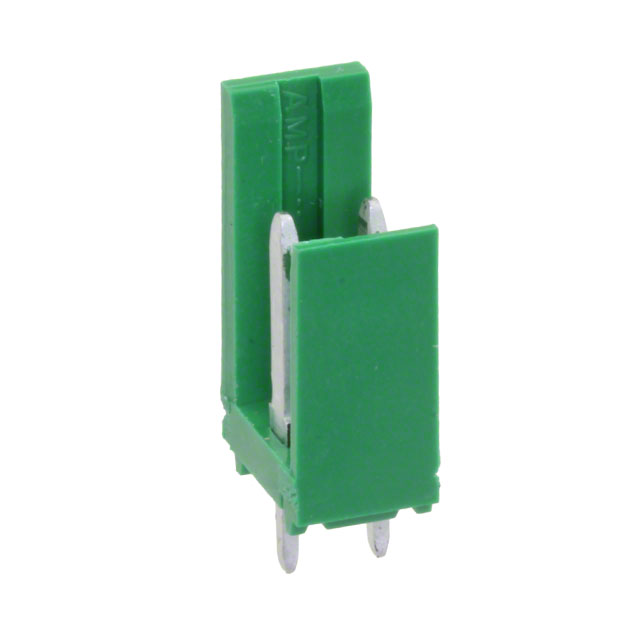

TE Connectivity AMP Connectors 280609-1


AMPMODU Mod I Series 1-Row Header Solder Brass Bulk Through Hole Tin Polycarbonate, Glass Filled 2-Position Board to Board or Cable 0.913 23.20mm Height

280609-1 Overview


The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMPMODU Mod I Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.SIL indicates that the package contains an enclosed device.Part Through Hole is mounted to the part.

280609-1 Features


AMPMODU Mod I series


280609-1 Applications


There are a lot of TE Connectivity AMP Connectors
280609-1 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
