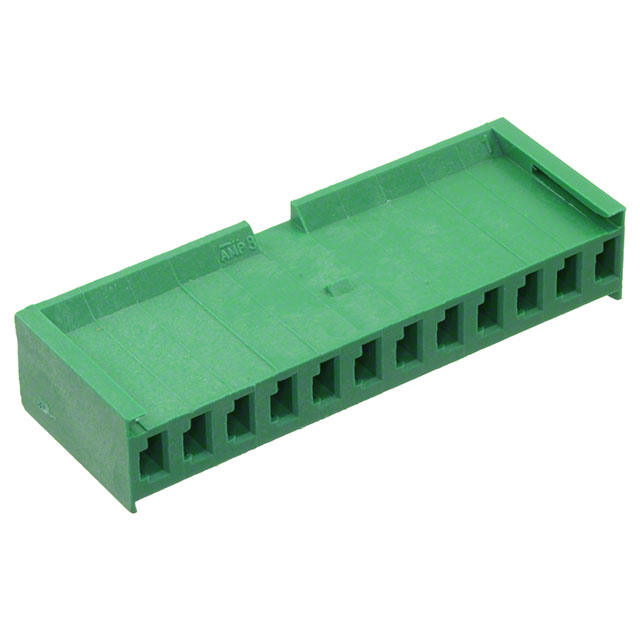

280595

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Product Length :

47.4 mm

Body Orientation :

Straight

Mounting Option 1 :

LOCKING

Contact Material :

NOT SPECIFIED

Polarization Key :

POLARIZED HOUSING

Product Type :

Headers and Wire Housings

Mixed Contacts :

No

Contact Style :

SQ PIN-SKT

Body/Shell Style :

Receptacle

Factory Lead Time :

43 Weeks

Termination Style :

Crimp

Packaging :

Bulk

Width :

9.3mm

Reach Compliance Code :

Compliant

RoHS :

Details

Product Category :

Headers and Wire Housings

Minimum Operating Temperature :

- 40 C

Housing Color :

Green

Brand :

TE Connectivity

Pitch (mm) :

3.96(mm)

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Body Depth :

0.669 inch

Base/Housing Material :

PC (Polycarbonate)

Contact Type :

Socket (Female)

Type :

Housing

Termination Type :

Crimp

Maximum Operating Temperature :

+ 105 C

Contact Pattern :

RECTANGULAR

Total Number of Contacts :

12

Gender :

Receptacle

Number of Rows :

1

Mounting Type :

CABLE

Contact Gender :

FEMALE

Product :

Wire Housings

Connector Type :

BOARD CONNECTOR

Filter Feature :

No

Tradename :

AMPMODU

For Use With :

AMPMODU MOD 1 Series Contacts

HTS Code :

8536.69.40.40

Insulator Color :

Green

Mating Contact Pitch :

0.156 inch

Series :

AMPMODU Mod I

Housing Gender :

Receptacle

Mounting Style :

Cable Mount / Free Hanging

ECCN Code :

EAR99

MIL Conformance :

No

Number of Positions :

12 Position

Body Breadth :

0.366 inch

Wire Gauge :

18-26(AWG)

Pitch :

3.9600 mm

Product Depth (mm) :

9.3(mm)

Length :

47.4mm

Reference Standard :

UL

Brand Name :

AMP

UL Flammability Code :

94V-1

Number of Contact Rows :

1

Housing Material :

Polycarbonate

Product Length (mm) :

47.4(mm)

Number of Contacts :

12 POS

DIN Conformance :

No

IEC Conformance :

No

Reliability :

COMMERCIAL

Additional Feature :

AMPMODU

Wire Size :

26 to 18, 26 AWG

Current Rating (Max) :

5/Contact(A)

Product Height (mm) :

17(mm)
