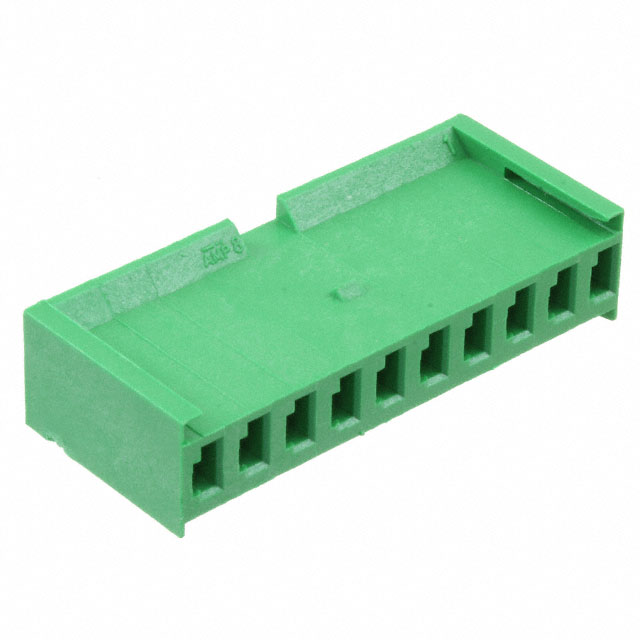

280594

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Published :

1999

Insulation Resistance :

5GOhm

Series :

AMPMODU Mod I

Max Operating Temperature :

105°C

Number of Rows :

1

ELV :

Compliant

Contact Design :

PREASSEM CONN

Width :

9.3mm

IEC Conformance :

No

Pbfree Code :

yes

Depth :

17mm

Packaging :

Bulk

Housing Material :

Polycarbonate

Number of Positions :

10

Reliability :

COMMERCIAL

Lifecycle Status :

ACTIVE (Last Updated: 6 months ago)

Note :

Contacts Not Included

MIL Conformance :

No

HTS Code :

8536.69.40.40

Connector Type :

Receptacle

Wire Gauge (Min) :

18 AWG

Wire Gauge (Max) :

26 AWG

DIN Conformance :

No

Rated Current (Signal) :

5A

Min Operating Temperature :

-65°C

Option :

GENERAL PURPOSE

Orientation :

Straight

Length :

39.5mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Keyed :

No

Color :

Green

Reference Standard :

UL, CSA

REACH SVHC :

Unknown

RoHS Status :

RoHS Compliant

Filter Feature :

No

Total Number of Contacts :

10

Mount :

Cable, Free Hanging, PCB

Body Breadth :

0.366 inch

Fastening Type :

Locking Ramp

Mounting Type :

Free Hanging (In-Line)

Contact Type :

Female Socket

Lead Pitch :

3.96mm

Contact Termination :

Crimp

Flammability Rating :

UL94 V-1

ECCN Code :

EAR99

Mixed Contacts :

No

Factory Lead Time :

44 Weeks

Polarization Key :

POLARIZED HOUSING

Pitch :

0.156 3.96mm
