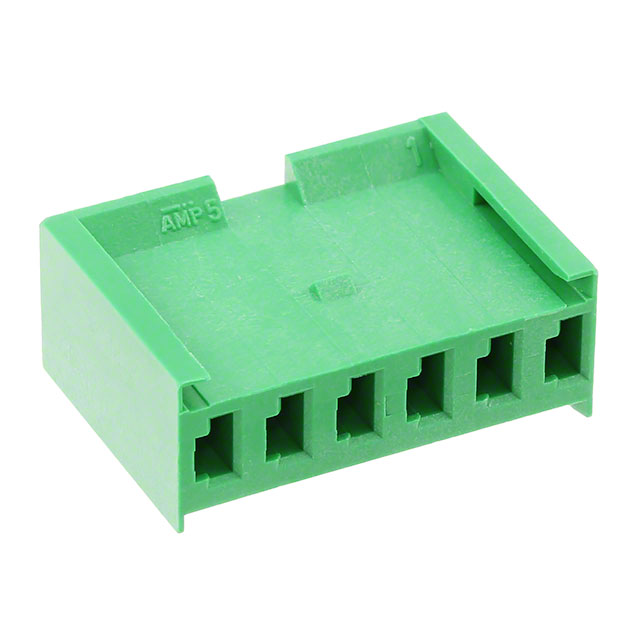

280592

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

DIN Conformance :

No

Contact Type :

Female Socket

ECCN Code :

EAR99

Factory Lead Time :

44 Weeks

IEC Conformance :

No

Pbfree Code :

yes

Rated Current (Signal) :

5A

Flammability Rating :

UL94 V-1

Polarization Key :

POLARIZED HOUSING

Max Operating Temperature :

105°C

Lifecycle Status :

ACTIVE (Last Updated: 7 months ago)

Contact Gender :

FEMALE

Mixed Contacts :

No

Contact Termination :

Crimp

Number of Rows :

1

Reliability :

COMMERCIAL

Note :

Contacts Not Included

Wire Gauge (Max) :

26 AWG

Width :

9.3mm

Lead Pitch :

3.96mm

Color :

Green

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Length :

23.7mm

Packaging :

Box

Keyed :

No

Connector Type :

Receptacle

Housing Material :

Polycarbonate

Published :

1999

Mount :

Cable, Free Hanging, PCB

Wire/Cable Gauge :

26 AWG

Depth :

17mm

Number of Positions :

6

Pitch :

0.156 3.96mm

Orientation :

Straight

Min Operating Temperature :

-65°C

Series :

AMPMODU Mod I

Wire Gauge (Min) :

18 AWG

Circuit Application :

Signal

Option :

GENERAL PURPOSE

REACH SVHC :

Unknown

Reference Standard :

UL, CSA

Insulation Resistance :

5GOhm

Current Rating :

5A

Mounting Type :

Free Hanging (In-Line)

Filter Feature :

No

RoHS Status :

RoHS Compliant

Total Number of Contacts :

6
