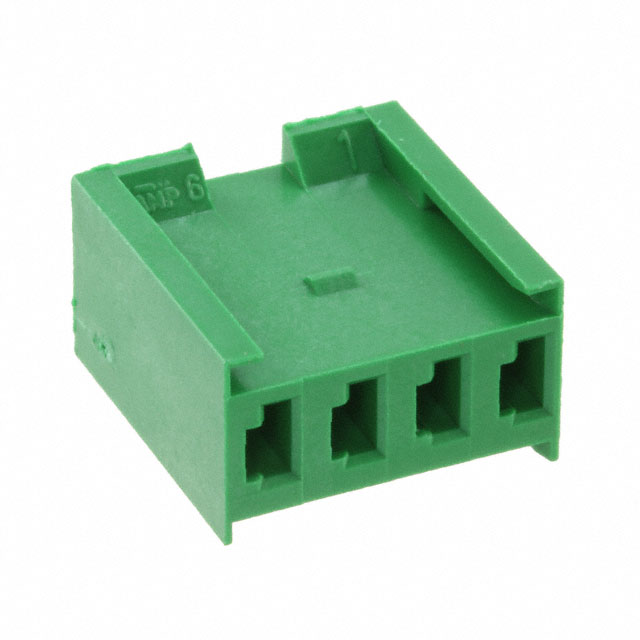

280591

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Series :

AMPMODU Mod I

Reference Standard :

UL

Connector Type :

Receptacle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

FEMALE

REACH SVHC :

Unknown

Keyed :

No

MIL Conformance :

No

Insulation Resistance :

5GOhm

Mounting Type :

Free Hanging (In-Line)

Depth :

17mm

Orientation :

Straight

Wire Gauge (Min) :

18 AWG

Flammability Rating :

UL94 V-1

Number of Positions :

4

Option :

GENERAL PURPOSE

Wire Gauge (Max) :

26 AWG

Note :

Contacts Not Included

Rated Current (Signal) :

5A

Mount :

Cable, Free Hanging, PCB

Color :

Green

Current Rating :

5A

Number of Rows :

1

DIN Conformance :

No

Factory Lead Time :

46 Weeks

IEC Conformance :

No

Contact Termination :

Crimp

ECCN Code :

EAR99

Housing Material :

Polycarbonate

Body Breadth :

0.366 inch

Lifecycle Status :

ACTIVE (Last Updated: 6 months ago)

Reliability :

COMMERCIAL

Max Operating Temperature :

105°C

Wire/Cable Gauge :

26 AWG

RoHS Status :

RoHS Compliant

Pbfree Code :

yes

Packaging :

Bulk

Mixed Contacts :

No

Total Number of Contacts :

4

Filter Feature :

No

Width :

9.3mm

Pitch :

0.156 3.96mm

Polarization Key :

POLARIZED HOUSING

Contact Type :

Female Socket

Lead Pitch :

3.96mm

Length :

15.7mm

Min Operating Temperature :

-65°C

Published :

1999
