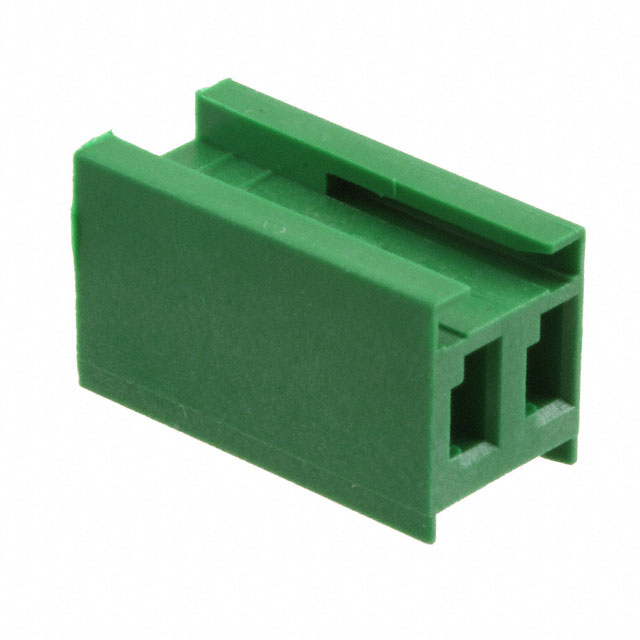

280590

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Connector Type :

Receptacle

Mount :

Cable, Free Hanging

Insulation Resistance :

5GOhm

Number of Positions :

2

Published :

1999

Width :

9.3mm

Depth :

17mm

Pitch :

0.156 3.96mm

Pbfree Code :

yes

Factory Lead Time :

44 Weeks

DIN Conformance :

No

Length :

7.8mm

Housing Material :

Polycarbonate

IEC Conformance :

No

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Current Rating :

5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

REACH SVHC :

Unknown

Keyed :

No

Wire Gauge (Min) :

18 AWG

Note :

Contacts Not Included

Lead Pitch :

3.96mm

Body Breadth :

0.366 inch

Color :

Green

Number of Rows :

1

Contact Gender :

FEMALE

Packaging :

Bulk

Mixed Contacts :

No

Series :

AMPMODU Mod I

Flammability Rating :

UL94 V-1

Lifecycle Status :

ACTIVE (Last Updated: 6 months ago)

ELV :

Compliant

Filter Feature :

No

Rated Current (Signal) :

5A

Contact Type :

Female Socket

RoHS Status :

RoHS Compliant

MIL Conformance :

No

Wire Gauge (Max) :

26 AWG

Mounting Type :

Free Hanging (In-Line)

Option :

GENERAL PURPOSE

Orientation :

Straight

Total Number of Contacts :

2

Reference Standard :

UL, CSA

Operating Temperature (Min) :

-65°C

Contact Termination :

Crimp
