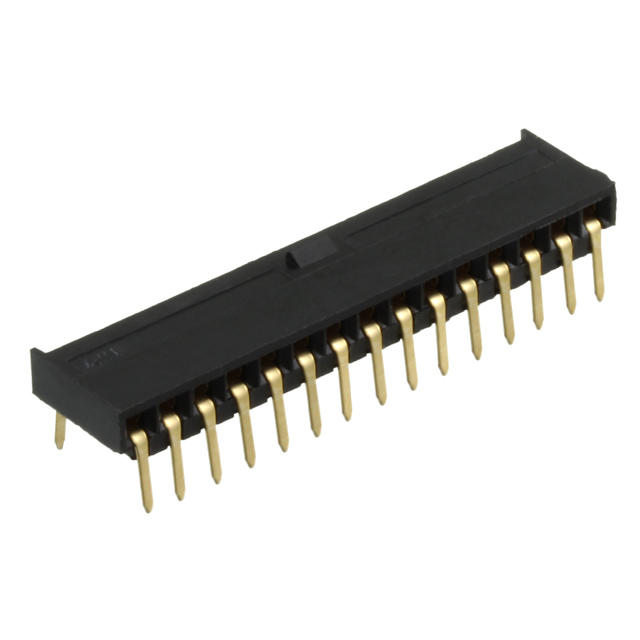

280581-2
Or copy the link below:
- Mfr.Part #
- 280581-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 15POS 0.1 GOLD PCB R/A
- Stock
- 400
- In Stock ：
- 400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 4.0386mm
- Style :
- Board to Board
- Number of Conductors :
- ONE
- JESD-609 Code :
- e4
- PCB Contact Pattern :
- RECTANGULAR
- Lead Length :
- 3.5mm
- Housing Material :
- Thermoplastic
- Width :
- 8.7mm
- Depth :
- 8.71mm
- Reference Standard :
- UL
- ECCN Code :
- EAR99
- Length - Tail :
- 3.5mm
- UL Flammability Code :
- 94V-0
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 33 Weeks
- Number of Positions Loaded :
- All
- Insulation Material :
- Polyester, Glass Filled
- Polarization Key :
- POLARIZED HOUSING
- Orientation :
- RIGHT ANGLE
- MIL Conformance :
- No
- Reliability :
- COMMERCIAL
- Filter Feature :
- No
- HTS Code :
- 8536.69.40.40
- Fastening Type :
- Friction Lock
- Terminal Pitch :
- 2.54mm
- Housing Color :
- Black
- Contact Shape :
- Square
- High Temperature Compatible :
- No
- Mixed Contacts :
- No
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle
- Plating Thickness :
- 760 nm
- Withdrawl Force-Min :
- .2085 N
- Series :
- AMPMODU Mod II
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Post :
- Flash
- PCB Contact Row Spacing :
- 7.62 mm
- Contact Type :
- Female Socket
- Insulation Resistance :
- 5GOhm
- PCB Mount Retention :
- Without
- Mount :
- Through Hole
- Stackable :
- yes
- IEC Conformance :
- No
- Number of Rows :
- 1
- Pbfree Code :
- yes
- ELV :
- Compliant
- PCB Mounting Orientation :
- RIGHT ANGLE
- Packaging :
- Bulk
- Operating Temperature :
- -65°C~105°C
- Insulation Height :
- 0.157 4.00mm
- Contact Finish Thickness - Mating :
- 16.0μin 0.41μm
- Contact Length - Post :
- 0.138 3.50mm
- Contact Current Rating :
- 3A
- DIN Conformance :
- No
- Gender :
- FEMALE
- Rated Current (Signal) :
- 3A
- Number Of PCB Rows :
- 2
- Option :
- GENERAL PURPOSE
- Number of Positions :
- 15
- Contact Finish - Mating :
- Gold
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- RoHS Compliant
- Published :
- 2008
- Pitch - Mating :
- 0.100 2.54mm
- Length :
- 38.6mm
- Termination :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Datasheets
- 280581-2
280581-2 Documents
1 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Bulk Gold Polyester, Glass Filled 15 Positions Female Socket
280581-2 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the AMPMODU Mod II Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-65°C~105°C Operating Temperature is the default operating temperature for the device.
280581-2 Features
AMPMODU Mod II series
280581-2 Applications
There are a lot of TE Connectivity AMP Connectors
280581-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
